| Brand Name: | Shi Zun |
| Model Number: | JP009 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |

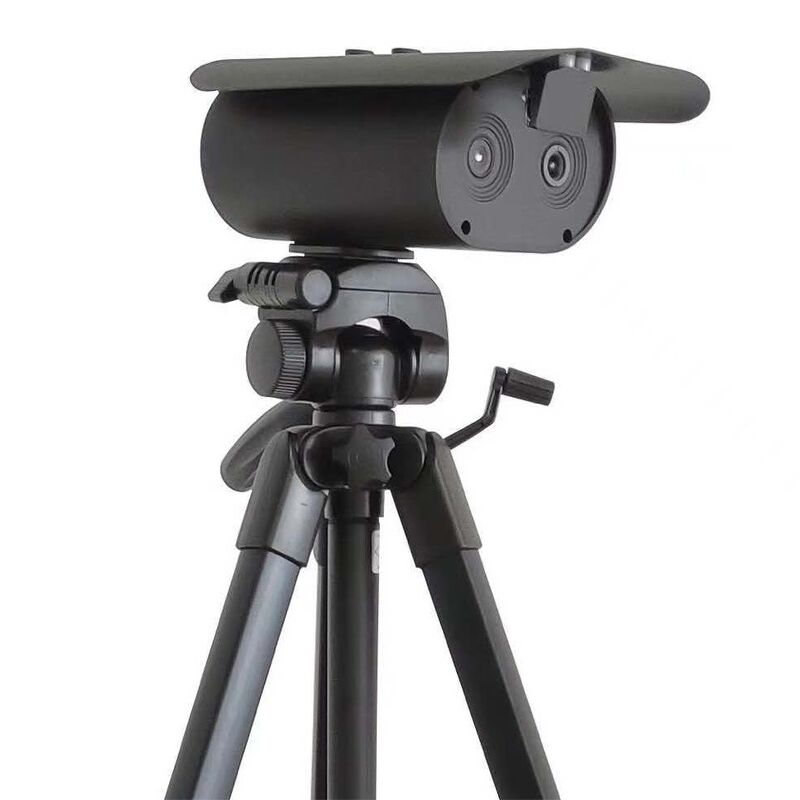

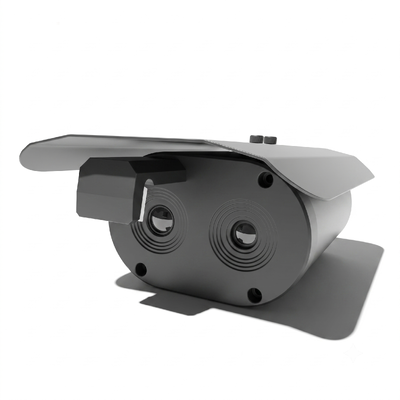

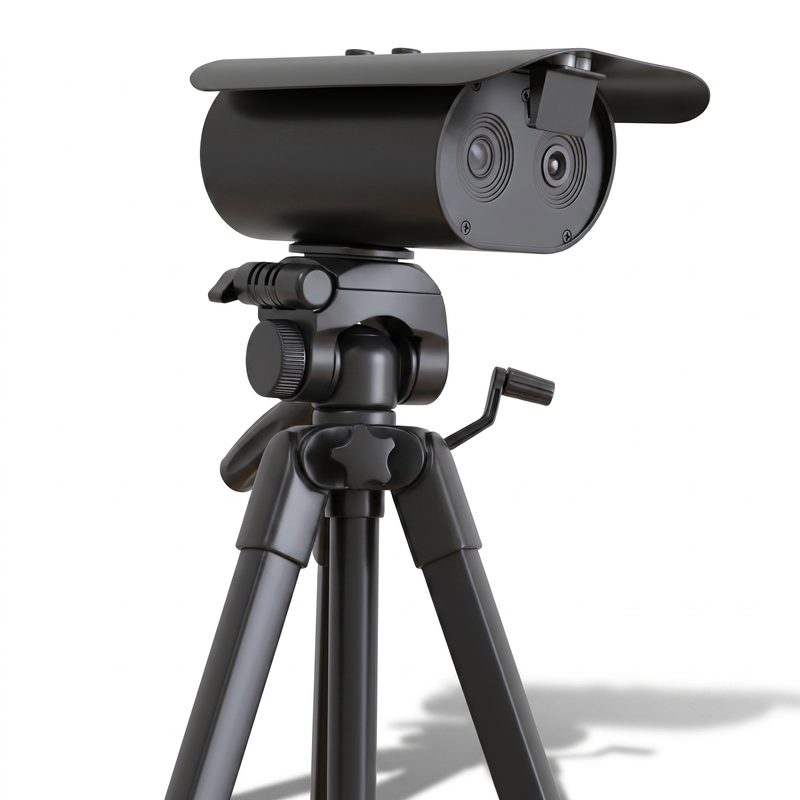

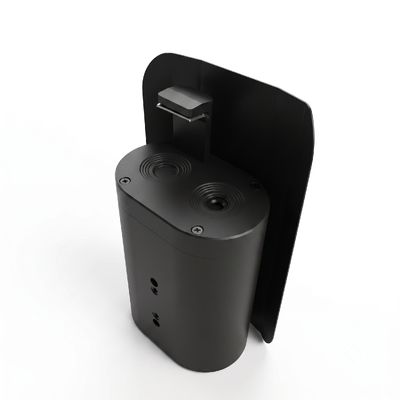

JP009 Thermal Imaging Camera for Elevated Body Temperature Screening High-Sensitivity Infrared Camera HD Visible Light Camera
1. Infrared Thermal Imaging Device Features:
The JP009 integrates a high-sensitivity infrared camera, high-definition visible light camera, high-precision blackbody, and a high-performance temperature measurement engine. It features non-medical, AI-driven capabilities, automatic alarms, a visualization platform, and a high-accuracy thermal imaging detection system.
Based on advanced AI algorithms and infrared thermal imaging temperature measurement technology, JP009 can quickly screen and alert individuals with elevated body temperatures within a crowd, accurately displaying the temperature values. This device is widely used in airports, stations, schools, hospitals, factories, shopping malls, and other large public areas.
The system features automatic face detection and capturing, enabling millisecond-level forehead temperature measurement with an accuracy of ±0.3°C. With AI-based automatic temperature algorithms, JP009 ensures accurate detection and identification without the need for manual intervention while rapidly analyzing and displaying individual temperature readings.
| Detector Type | Uncoiled Infrared Array Sensor |
| Resolution | 160X120(384*288) |
| Pixel Pitch | 17μm |
| Detector NETD | ≤60mk(F/1,300K, 50Hz) |
| Frame Rate | 15 Hz |
| Temperature Measurement Data Output | Full Range Temperature Output |
| Measurement Distance | 0.5–4 meters (optimal range: 0.5–2.5 meters) |
| Detection Rate | 150–200 people per minute |
| Resolution | 2 Megapixels |
| Imaging Sensor | CMOS |
| Minimum Illumination | 0.01Lux (Color Mode), 0.001Lux (Black & White Mode) |
| Signal to Noise Ratio | >56dB |
| Effective radiation area | 20mm*30mm |
| Effective emissivity | 0.96 ±0.02 |
| temperature range | (Ambient temperature+5°C)~(50°C) |
| Temperature resolution | 0.01°C |
| Stability Accuracy | Better than ±0.1°C |
| Heating time | <2 minute |
| SOC | Broad com BCM2711 |
| CPU | 64 bit, 1.5GHz Quad-Core (28nm Process) |
| GPU | Broadcom VideoCore VI @500Hz |
| Bluetooth | 5.0 |

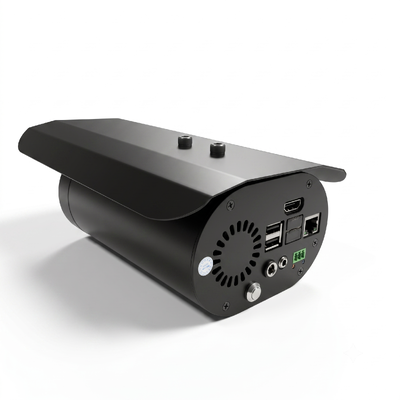

| USB | USB 2.0*2 |
| HDMI | Supported |
| Network | Wi-Fi 802.11AC, Gigabit Ethernet |
| multimedia |
H.265(4Kp60 decode)
H.264(1080p60 decode,1080p30 encode)
OpenGL ES 3.0 Graphics)
|
| Features | IR-CUT Auto Switching, Backlight Compensation, Strong Light Suppression, Auto White Balance |

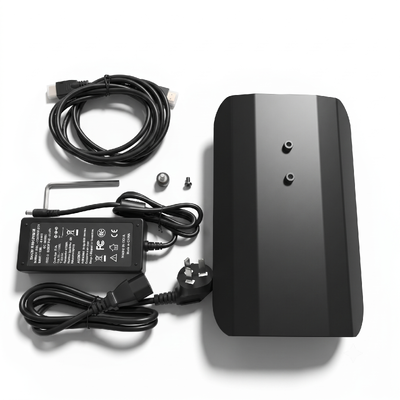

| Working Voltage | Standard 5.5V 10A Adapter |
| Power Consumption | <15W |
| Installation Methods | Bracket, Wall-Mounted, Ceiling-Mounted |
| Dimensions | Length 230mm x Width 142.6mm x Height 88.5mm |
| Weight | 1.5kg |
|
