JP-FM225 Facial Recognition Camera Module with AI Algorithm Supports USB output of color video in MJPEG format

Name: JP-FM225 Facial Recognition Camera Module with AI Algorithm Supports USB output of color video in MJPEG format
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: JP-FM225
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	JP-FM225
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Model:

FM225

Facial Recognition Algorithm:

Supports Deep Learning Infrared Facial Recognition Algorithm

Number Of Users (Facial Recognition):

100 Users

Facial Recognition Accuracy:

98.85%

False Acceptance Rate (Facial Recognition):

0.0001%

Recognition Angle (Facial Recognition):

Approximately ±20° (horizontal And Vertical). (Supports Multi-angle Facial Entry To Expand Recognition Range)

Recognition Distance (Facial Recognition):

30-110 Cm

Liveness Detection:

Supported

Liveness Detection False Acceptance Rate (LDAFAR):

≤1%

Liveness Detection False Rejection Rate (LPFRR):

≤1%

Video Function:

Supports USB Output Of Color Video In MJPEG Format

Communication Interface:

UART & USB

UART Baud Rate:

115200 (default)

Power Supply Voltage:

5.5V–9.0V

Shutdown Current:

0 μA

Operating Temperature:

-20°C To +60°C

Storage Temperature:

-30°C To +70°C

Relative Humidity:

10%–93% (non-condensing)

Packaging Details:

40mm * 15mm * 10.65mm

Supply Ability:

100+pcs+day

Highlight:

USB face recognition module

face recognition module 1080p

Wide Dynamic face recognition module

Product Description

JP-FM225 Facial Recognition Camera Module with AI Algorithm Supports USB output of color video in MJPEG format

JP-FM225 Facial Recognition Camera Module Features:

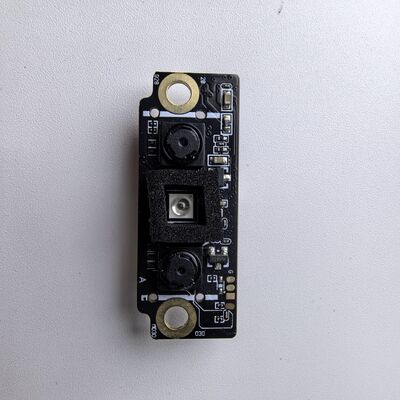

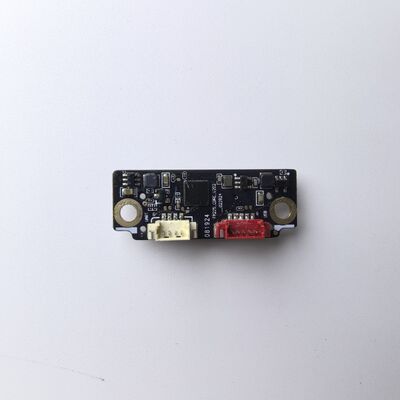

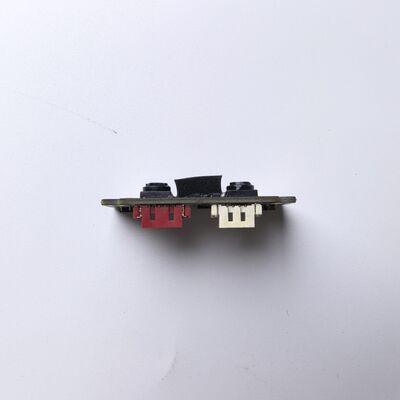

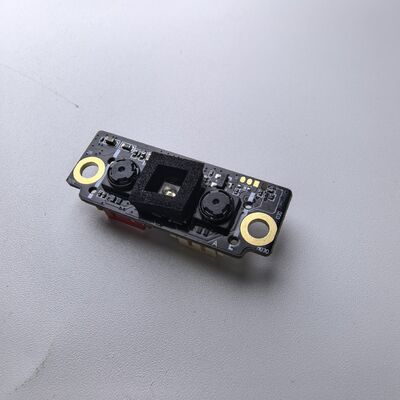

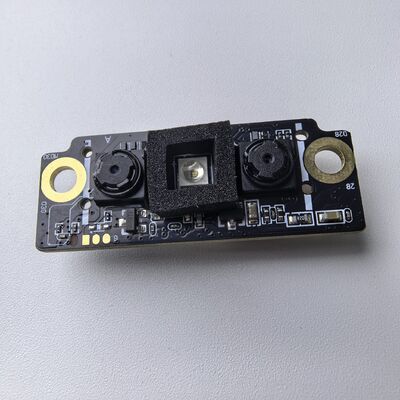

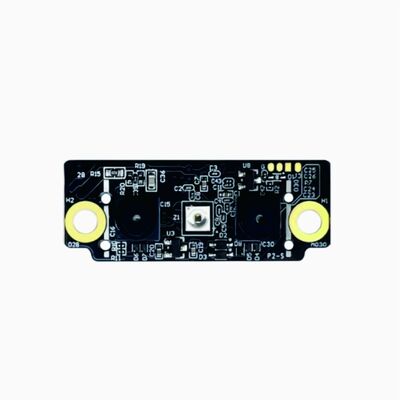

The JP-FM225 is a compact facial recognition module solution, primarily designed for applications such as smart door locks. The module consists of a facial recognition algorithm board, a dual-lens camera, and infrared LED lights.
The JP-FM225 module uses infrared and visible light cameras to perform liveness detection, facial capture, feature extraction/matching, and user data storage. Through UART/USB interfaces, it enables facial recognition functionality for smart door locks. The visible light camera simultaneously outputs video streams, providing both facial recognition and peephole video functionality for smart locks.

JP-FM225 Facial Recognition Camera Module Parameter:

Facial Recognition Algorithm:	Supports deep learning infrared facial recognition algorithm
Number of Users (Facial Recognition):	100 users
Facial Recognition Accuracy:	98.85%
False Acceptance Rate (Facial Recognition):	0.0001%
Recognition Angle (Facial Recognition):	Approximately ±20° (horizontal and vertical)
Recognition Distance (Facial Recognition):	30-110 cm
Video Function:	Supports USB output of color video in MJPEG format
Communication Interface:	UART & USB
UART Baud Rate:	115200 (default)
Power Supply Voltage:	5.5V–9.0V

JP-FM225 Facial Recognition Camera Module with AI Algorithm Supports USB output of color video in MJPEG format 0
