JP308 3D Structured Light Camera Module Palmprint / Palm Vein Dual-Modal incorporating a high-performance ISP and AI module

Name: JP308 3D Structured Light Camera Module Palmprint / Palm Vein Dual-Modal incorporating a high-performance ISP and AI module
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: JP308
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	JP308
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Overall Dimensions:

L53.12mm * W53.12mm * H14.33mm

Camera:

RGB/IR

Communication Interface:

USB TypeC (USB 2.0 Agreement)

Palm Scanning Working Distance:

5~15cm

QR Code Scanning Working Distance:

3~20cm, Supports For Simple QR Code

Operating Voltage:

5V~12V

Power Supply Current:

>1.5A @5V

Module Power Consumption:

Average 2.5W

ESD Level:

Contact Discharge ±4KV, Air Discharge ±8KV

RE Level:

Complies With GB 9254 CLASS B Specifications

Palm Scanning Angle:

Pitch Angle ≤ 30°, Roll Angle ≤ 30°, Horizontal Rotation ≤ 360°

Palm Recognition Success Rate:

98%

Host Computing Power Requirements:

≥4*A17 @1.8GHz

Algorithm Deployment Method:

Support For Local Deployment And Cloud Deployment

Image Processing:

High-Performance ISP Inside/ Palm AE Inside

Security:

Palmprint Feature Encryption

OTA Support:

Support For USB Upgrade

Compatibility Of The System:

Support For Android 7/8/9/10; Support For Windows 10

Operating Temperature:

-10℃~50℃

Relative Humidity:

0~95%

Illuminance:

0~50,000Lux（ Module Not Exposed To Direct Sunlight）

Storage Temperature:

-40℃~85℃

Storage Humidity:

10%~95%

Packaging Details:

53.12mm x 53.12mm x 4.33mm

Supply Ability:

100+pcs+day

Highlight:

AEC face recognition module

face recognition module 2million

Product Description

JP308 3D Structured Light Camera Module Palmprint / Palm Vein Dual-Modal incorporating a high-performance ISP and AI module

JP308 3D Structured Light Camera Module Introduction:

Veinshine 01 RGB&IR dual-modal palm scanner camera utilizes high-precision optical technology, incorporating a high-performance ISP and AI module. It features a unique software-based AE algorithm, enabling efficient palm detection and closed-loop

Palm AE under various lighting conditions, including low-light environments, to provide high-quality palm

print and palm vein images.

JP308 3D Structured Light Camera Module System Requirements:

Image algorithm processing is carried out inside the module
The upper computer needs to perform palmprint recognition algorithms, including liveness detection and feature extraction. It

is recommended to have a system with computing power of at least Arm 4 * A17@1.8GHz

JP308 3D Structured Light Camera Module Features:

Palmprint / Palm Vein Dual-Modal
Polarized light system
RGB / IR aligned
Palm AE inside
Customized Lighting Interaction System
Large Field of View (FOV), 5~15cm Palm Scanning Working Distance

JP308 3D Structured Light Camera Module Applicabilities:

Palm ID and access control
Subway turnstiles
Retail payments

JP308 3D Structured Light Camera Module Parameter:

Camera:	RGB/IR
Communication Interface:	USB TypeC (USB 2.0 Agreement)
Operating Voltage:	5V~12V
Module Power Consumption:	Average 2.5W
Palm Recognition Success Rate:	98%
Host Computing Power Requirements:	≥4*A17 @1.8GHz
Algorithm Deployment Method:	Support for Local Deployment and Cloud Deployment
OTA Support:	Support for USB Upgrade
Compatibility of the System:	Support for Android 7/8/9/10; Support for Windows 10
Working Temperature:	-10℃~50℃

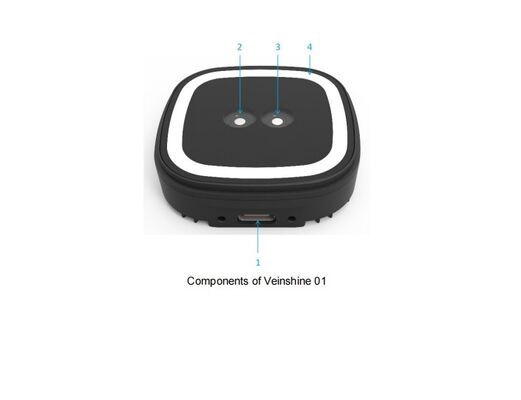

JP308 3D Structured Light Camera Module Palmprint / Palm Vein Dual-Modal incorporating a high-performance ISP and AI module 0

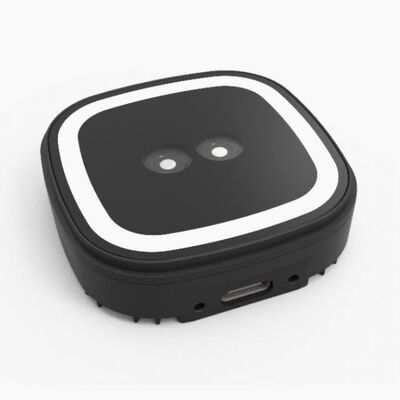

JP308 3D Structured Light Camera Module Palmprint / Palm Vein Dual-Modal incorporating a high-performance ISP and AI module 4
