Face Recognition Terminal
Created with Pixso. JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset

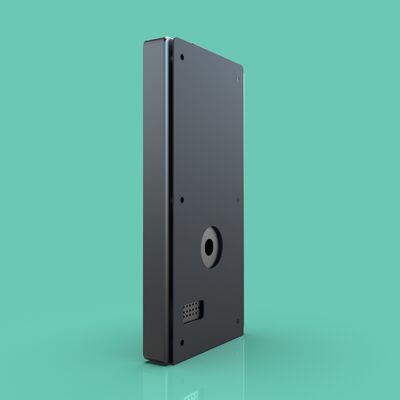

JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset

Brand Name: Shi Zun
Model Number: JP1811
MOQ: Negotiable
Price: Negotiable
Delivery Time: 10 working days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Operating System:
RK 3568, Quad-core CPU, 2.0GHz, Android 11 Version
Configuration:
2GB RAM, 16GB Storage
LCD Screen Size:
8 Inches
Screen Resolution:
800 × 1280
Viewing Angle:
178° Full-view Angle (R/L)
Brightness:
500 Cd/m²
Touch Screen:
10-point Capacitive Touch Screen
Camera:
Dual-lens, 2MP HD, Wide Dynamic Range, Supports Live Detection, With A Shooting Distance Of 0.4-2m
Tri-Color Fill Light:
Green, Red, White
Speaker:
8Ω, 3W
Operating Parameters:
Voltage: 12V / Current: 3A Operating Temperature: -20°C To 70°C Humidity: 5% To 90% RH
External Interfaces:
1 × USB/OTG 1 × RJ45 1 × Relay Output 1 × Power Input 1 × Wiegand 1 × RS232/485
Surface Material:
Tempered Glass Front Cover
Body Craftsmanship:
NC Precision-machined Aluminum Alloy With Anodized Finish
Installation Methods:
Pedestal Turnstile, Wall-mounted, Or Desktop Installation
Color:
Black Front Panel With Silver Edges And Silver Back Cover
Packaging Details:
8 inches
Supply Ability:
100+pcs+day
Highlight:

8 Inch Face Recognition Access Control Terminal

,

Face Recognition Access Control Terminal 12V

,

Wall Mounted Facial Recognition Terminal

Product Description

JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset



Product Overview:
The 8-inch Face Recognition All-in-One Device is a cutting-edge intelligent terminal that integrates advanced face recognition technology. Designed for efficient and accurate identity authentication and information management, this device offers fast recognition speed, enhanced security, high precision, and quick responsiveness. It is widely applicable in various scenarios, including office buildings, residential communities, schools, and commercial areas.



Technical Features:

  1. HD Camera: Equipped with a 2-megapixel wide dynamic range (WDR) dual-lens camera, supporting multimodal biometric recognition and WDR liveness detection for accurate and fast face recognition.
  2. Large Face Database: Capable of storing up to 50,000 faces, meeting the requirements of large-scale venues.
  3. Industrial-Grade Motherboard: Built with a self-developed industrial-grade Android RK3568 chipset to ensure reliable 24/7 operation.
  4. Multi-Touch Support: Features an 8-inch LED screen with 10-point capacitive touch for smooth and intuitive user interaction.
  5. Dust and Water Resistance: Industrial-grade design ensures dustproof and waterproof functionality, suitable for various environments.

Advantages:

  1. High Efficiency: Utilizes advanced face recognition algorithms for quick access, improving operational efficiency.
  2. Enhanced Security: Biometric recognition provides superior security, mitigating risks of password or fingerprint breaches.
  3. Contactless Operation: Allows users to interact without physical contact, enhancing convenience and hygiene.

Application Scenarios:

  • Smart Office: Facilitates self-service check-in, attendance management, and access control to boost workplace efficiency.
  • Smart Security: Rapidly identifies suspicious individuals in crowded areas such as airports and stations, enhancing public safety.
  • Unmanned Retail: Supports payment verification and customer flow analysis, optimizing shopping experiences.



Operating System: RK 3568, Quad-core CPU, 2.0GHz, Android 11 Configuration: 2GB RAM, 16GB Storage
LCD Screen:
  • Size: 8 inches
  • Resolution: 800×1280
  • Viewing Angle: R/L 178° wide viewing angle
  • Brightness: 500cd
Touchscreen: 10-point capacitive touch
Camera: Dual 2MP HD lens, wide dynamic range, supports liveness detection, shooting range: 0.4–2m Three-Color Fill Light: Green, Red, White
Speaker: 8Ω, 3W Working Parameters:
  • Voltage: 12V
  • Current: 3A
  • Operating Temperature: -20°C to 70°C
  • Humidity: 5% to 90% RH
External Interfaces:
  • 1× USB/OTG
  • 1× RJ45
  • 1× Relay Output
  • 1× Power Supply
  • 1× Wiegand
  • 1× RS232/485
Surface Material: Tempered glass on the front
Installation Methods: Pedestal turnstile, wall-mount, desktop Color: Black front panel, silver frame, silver

back cover



JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset 0JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset 1JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset 2JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset 3JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset 4JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset 5JP1811 Wall-Mounted Face Recognition and Card Access Control All-in-One Device 8-Inch with a industrial-grade Android RK3568 chipset 6
