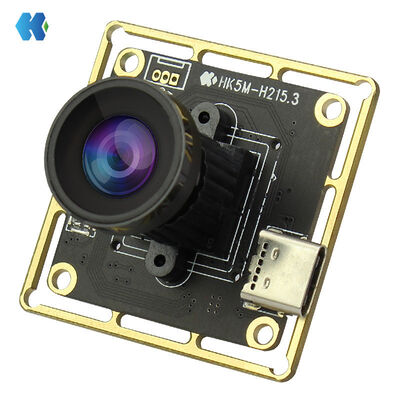

H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module

Name: H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: H215-TYPE
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	H215-TYPE
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Keywords:

YUV Industrial Vision Camera Module

Photosensitive Chip:

CMOS 1/2.5”

Pixel Size:

2.2μm X 2.2μm

SNR Max:

39 DB

Max Dynamicrange:

110 DB

Minimum Illumination:

0.1Lux At F12

F/No:

1.8

EFL:

2.26mm

FOV:

120°

IR:

650±10nm

Lens Construction:

6G+IR

Maximum Resolution And Frame Rate:

2592*1944(30ps)

Other Optional Resolution Ratio:

640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1024* 768(30fps), 1920* 1080(30fps), 1600* 1200(30ps), 2048* 1536(30fps), 2560* 1440(30ps)

Support Format:

YUV / MJPG

USB Power Supply Voltage:

5V±5%

Connect The Interface:

1* Type-C

Interface Speed:

500MB/s

Operating Systemrequest:

WinXP, Win7, Linux Or Vista And Android4.1

Power Consumption:

Regular Work: 0.9W

Storage Temperature:

0°C To 50°C

Working Temperature:

-10°C To+70°

Structure Size:

38mmx 38mmx 25.4mm

Packaging Details:

38mmx 38mmx 25.4mm

Supply Ability:

100+pcs+day

Product Description

H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module

H215-TYPE YUV Industrial Vision Camera Module Features:

5M Wide Dynamic Camera
Type-C 1080p High Definition
5M Wide Dynamic Camera (Note: This feature is repeated, so it's only listed once)
USB 2.0 Million High-Definition Pixels
Can be equipped with MIC, supports audio recording, video recording, can be equipped with photodiodes, infrared illumination
Suitable for access control, turnstiles, ID verification, advertising machines, video conferencing, face recognition, self-service terminal devices, Android devices, and other scenarios
Large aperture, long focal length depth is optional
Industrial-grade main control chip
Ultra-clear image with ultra-high resolution
Backlight compensation
TYPE-C connection data interface
Supports clip and穿孔 (Note: "穿孔" seems to be a typo or incomplete, it might be "perforated" or "piercing" depending on the context, but it's left as is for accuracy) 13: High Definition or Clearer Imaging

H215-TYPE YUV Industrial Vision Camera Module Parameter:

Connect the interface:	1* Type-C
Interface speed:	500MB/s
Maximum resolution and frame rate:	2592*1944(30ps)
Other optional resolution ratio:	640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1024* 768(30fps), 1920* 1080(30fps), 1600* 1200(30ps), 2048* 1536(30fps), 2560* 1440(30ps)
Support format:	YUV / MJPG
Max Dynamic range:	110 dB
Minimum illumination:	0.1Lux at F12
Power Consumption:	Regular work: 0.9W
Photosensitive chip:	CMOS 1/2.5”
Pixel Size:	2.2μm x 2.2μm
Operating systemrequest:	WinXP, Win7, Linux or Vista and android4.1

H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module 0

H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module 4

H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module 6
