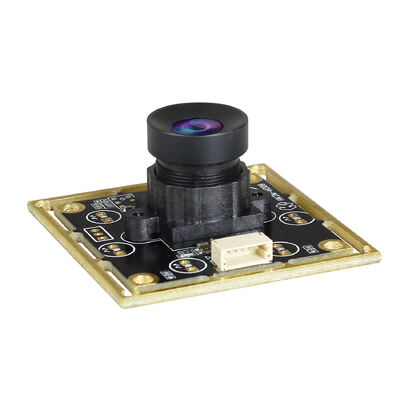

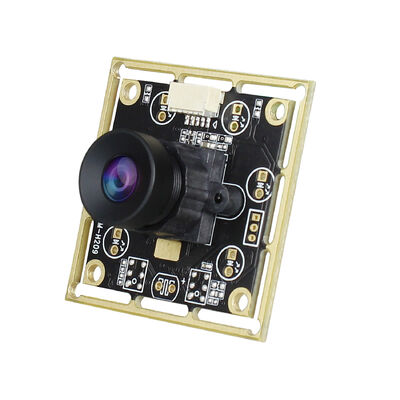

HK2M-H2091 Wide Dynamic Camera Module 1080p Industrial Module Backlight Compensation with Illumination

Name: HK2M-H2091 Wide Dynamic Camera Module 1080p Industrial Module Backlight Compensation with Illumination
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: HK2M-H2091
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	HK2M-H2091
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Photosensitive Chip:

RGB CMOS1/2.7"

Pixel Size:

3.0μm X3.0μm

SNR Max:

TBD DB

Max Dynamic Range:

90 DB

Minimum Illumination:

0.1Lux At F12

F/No:

2.4

EFL:

2.9mm

FOV:

95°

IR:

650±10nm

Lens Construction:

2G2P+IR

Maximum Resolution And Frame Rate:

1920*1080(30fps)

Other Optional Resolution Ratio:

640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)

Support Format:

YUV / MJPG

USB Power Supply Voltage:

5V±5%

Connect The Interface:

1* USB-5pin-1.0mm

Interface Speed:

480mb/s

Operating Systemrequest:

WinXP, Win7, Linux Or Vista And Android4.1

Power Consumption:

Regular Work: 0.7W

Storage Temperature:

0°C To 50°C

Working Temperature:

-10°C To+60°

Structure Size:

38mmx 38mmx 17.6m

Packaging Details:

38mmx 38mmx 17.6m

Supply Ability:

100+pcs+day

Product Description

HK2M-H2091 Wide Dynamic Camera Module 1080p Industrial Module Backlight Compensation with Illumination

HK2M-H2091 Wide Dynamic Range Camera Module Features:

2M Wide Dynamic Range Camera
USB 1080p High Definition
2M Wide Dynamic Range Camera (Note: This feature is repeated, consider removing the repetition for clarity)
USB 2-Megapixel High Definition Pixel
Suitable for access control, turnstile, ID card verification, advertising machines, video conferencing, face recognition, self-service terminal devices, Android devices, and other scenarios
Large Aperture, Optional Long Depth of Field Focus
Temperature testing allows for operation up to 70°C and as low as -10°C
Backlight Compensation
USB Data Connection Interface
Supports Clip and Perforated Mounting
High Definition or Clearer Imaging

HK2M-H2091 Wide Dynamic Range Camera Module Parameter:

Connect the interface:	1* USB-5pin-1.0mm
Interface speed:	480mb/s
Maximum resolution and frame rate:	1920* 1080(30ps)
Other optional resolution ratio:	640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)
Support format:	YUV/ MJPG
Max Dynamic Range	90dB
F/No:	2.2
EFL:	2.9mm
FOV:	95°
Lens Construction:	2G2P+IR
Power Consumption:	Regular work: 0.7W
Operating systemrequest:	WinXP, Win7, Linux or Vista and android4.1

HK2M-H2091 Wide Dynamic Camera Module 1080p Industrial Module Backlight Compensation with Illumination 0
