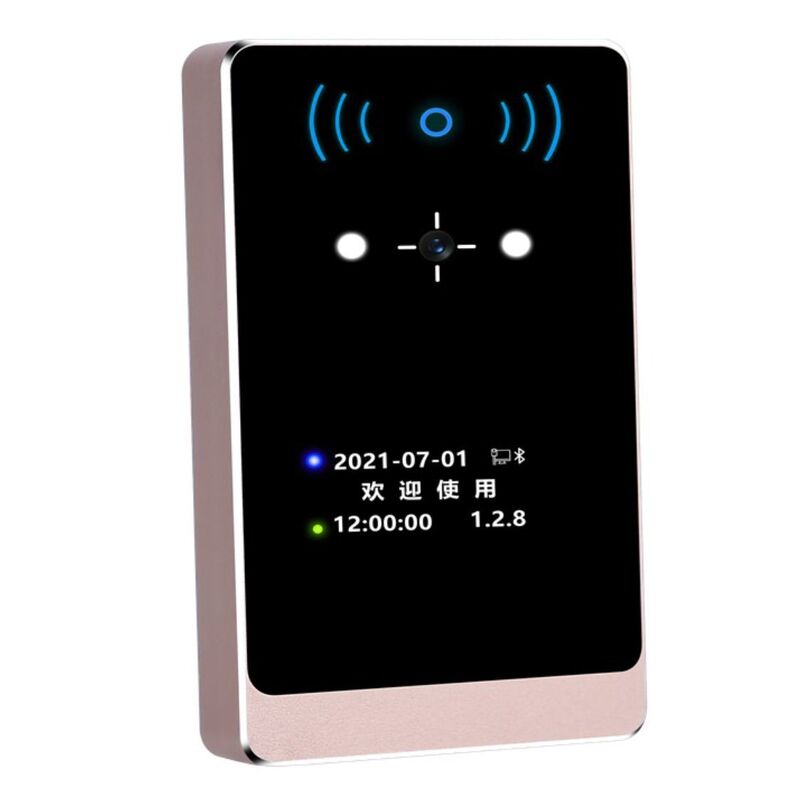

SK87E QR Code Access Control Integrated Machine Buzzer, 2.8-inch LCD display Interaction Methods

Name: SK87E QR Code Access Control Integrated Machine Buzzer, 2.8-inch LCD display Interaction Methods
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: ASK8721E
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	ASK8721E
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Networking:

Ethernet/ WIFI

Opening Methods:

QR Code/IC Card/ CPU Card/ ID Card/ Mobile NFC/ Bluetooth

USB Type:

USB2.0x2

Power Supply:

DC 12 Volts 3 A, Aperture 5 Mm

Earphone:

20 MW @ 16 Ohm, Stereo, 3.5 Mm Diameter Headphone Jack

Origin:

China

Communication Protocols:

HTTP, MQTT, TCP/IP For Cloud Platform Management, Remote Management Via Mini Programs

Processor:

Xtensa 32-bit LX6 Dual-core Processor, With A Main Frequency Of 600 MIPS

Operating System:

FreeRTOS Embedded System

Recognition Support:

QR Code, Bluetooth, IC Card, CPU Card, NFC

Protocol Support:

HTTP, MQTT, TCP/IP

External Interfaces:

Dry Contact Output, Exit Button Input, Door Magnet Input

Supported QR Code Formats:

PDF417/Data Matrix/QR Code

Code Reading Angle:

Elevation And Tilt ±65°, Rotation 360°

Scanning Angle:

Horizontal 75°, Vertical 55°, Diagonal 85°

Reading Speed:

Less Than 0.2 Seconds

Scanning Distance:

5-15 Cm

Interaction Methods:

Buzzer, 2.8-inch LCD Display

Input Voltage:

DC12V/500mA (Supports 5-30V)

Bluetooth Version:

BLE 4.1

User Storage:

60,000 Users

Waterproof Level:

IPX65

Tempered Glass Panel:

Operating Environment: Temperature:

-20°C To 70°C, Humidity 5%-95%

Product Dimensions:

115* 75* 21 (mm)

Product Weight:

160g

Packaging Details:

115* 75* 21 (mm)

Supply Ability:

100+pcs+day

Highlight:

11.6 Inch Qr Access Control Reader

Qr Access Control Reader All In One

Product Description

SK87E QR Code Access Control Integrated Machine Buzzer, 2.8-inch LCD display Interaction Methods

SK87E Qr Code Access Control Device Description:

Network Options: Ethernet / WIFI
Access Methods: QR Code / IC Card/CPU Card / ID Card/Mobile NFC / Bluetooth
Communication Protocols: HTTP, MQTT, TCP/IP; Cloud Platform Management, Mini Program Remote Management
Features: Remote Access, Customizable Anti-Copying, Custom Voice Playback, Screen UI customization
Supports Secondary Development for Third-Party Platform Integration
Material: Tempered Glass Panel / Metal Casing / Waterproof

SK86GK Qr Code Access Control Device Parameters:

Processor	Xtensa 32-bit LX6 dual-core processor, with a main frequency of 600 MIPS
Operating System	FreeRTOS Embedded System
Recognition Support	QR Code, Bluetooth, IC Card, CPU Card, NFC
Protocol Support	HTTP, MQTT, TCP/IP
External Interfaces	Dry Contact Output, Exit Button Input, Door Sensor Input
Supported QR Code Formats	PDF417 / Data Matrix / QR Code
Code Reading Angle	Elevation and Tilt ±65°, Rotation 360°
Scanning Angles	Horizontal 75°, Vertical 55°, Diagonal 85°
Reading Speed	<0.2 seconds
Interaction Methods	Buzzer, 2.8-inch LCD display

SK87E QR Code Access Control Integrated Machine Buzzer, 2.8-inch LCD display Interaction Methods 0
