Face Recognition Terminal
Created with Pixso. JP1310 Portrait Wall-Mounted Face Recognition Password Access Control Device Supports TCP/IP and Wi-Fi network connections

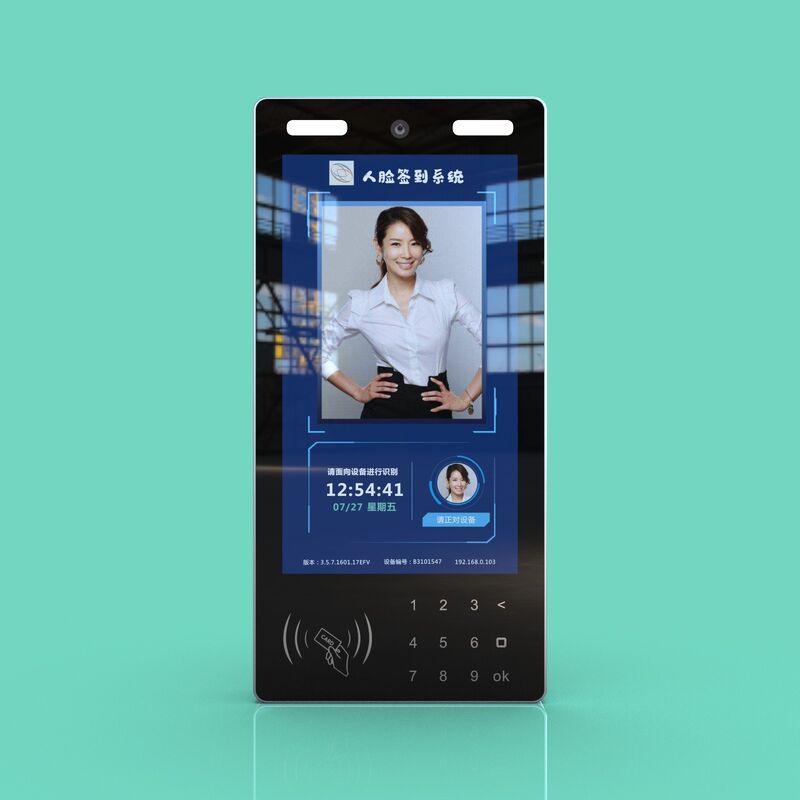

JP1310 Portrait Wall-Mounted Face Recognition Password Access Control Device Supports TCP/IP and Wi-Fi network connections

Brand Name: Shi Zun
Model Number: JP1310
MOQ: Negotiable
Price: Negotiable
Delivery Time: 10 working days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Operating System:
Optional RK 3568/3288, Quad-core CPU, 2.0/1.8 GHz · Android 11/7.1 Versions
Configuration:
2GB RAM, 16GB Storage
LCD Screen Size:
13.3 Inches
Resolution:
1920×1080
Viewing Angle:
R/L 178° Full View
Brightness:
300cd
Camera:
2MP Wide Dynamic Range, Anti-backlight · Shooting Distance: 0.4–2m
Fill Light:
Front-facing Fill Light, White
Card Reader:
Optional IC/ID/Second-generation ID Card · Reading Time: <1s · Reading Distance: 0–30mm
Digital Keypad:
12-key Capacitive Touch Keypad
Speakers:
8Ω, 3W × 2
Operating Parameters:
Voltage: 12V · Current: 3A · Operating Temperature: -20°C To 70°C · Humidity: 5%–90% RH
Exterior Dimensions:
340×295×30mm
External Interfaces:
2 USB Ports, 1 RJ45 Port, 1 DC Interface, 1 TF Card Slot, 1 SIM Card Slot, HDMI, Supports External 485/232/relay
Surface Material:
Tempered Glass Front Cover
Body Craftsmanship:
Aluminum Alloy + Sheet Metal
Installation Method:
Wall-mounted
Packaging Details:
340×295×30mm
Supply Ability:
100+pcs+day
Highlight:

IP54 Face Recognition Terminal

,

Waterproof Face Recognition Terminal

,

IP54 face scanner machine

Product Description

JP1310 Portrait Wall-Mounted Face Recognition Password Access Control Device Supports TCP/IP and Wi-Fi network connections



Product Overview:
The 13-inch portrait wall-mounted face recognition password access control device integrates advanced face recognition technology, designed for visitor management and identity verification. With its large touch screen, high-definition camera, and powerful processing capabilities, it offers users a secure and convenient identity verification solution.



Technical Features:

  1. HD Display Screen:
    Equipped with a 13-inch IPS color LCD screen with a resolution of 1920×1080, providing clear image display and smooth touch operation.

  2. Face Recognition Technology:
    Powered by deep learning algorithms, it supports 1:N face matching with a recognition distance of 0.3m–2.0m, a recognition speed of less than 0.2 seconds, and an accuracy rate of ≥99%.

  3. Multiple Authentication Methods:
    Supports various authentication methods including facial recognition, card swiping (Mifare card/IC card, mobile NFC card, CPU card serial number, ID card serial number), and passwords, offering flexible options suitable for different security levels.

  4. Network Connectivity:
    Supports TCP/IP and Wi-Fi network connections, enabling convenient remote management and data synchronization.

Application Advantages:

  • Enhanced Security:
    Utilizes biometric technology to effectively eliminate risks associated with compromised passwords or fingerprints, offering better privacy protection.
  • Improved Efficiency:
    A quick identity verification process reduces waiting time and enhances access efficiency.
  • Ease of Management:
    Supports remote management and data export, simplifying personnel management and attendance tracking.

Application Scenarios:

  • Corporate Offices:
    Facilitates fast employee attendance and access management.
  • Residential Communities:
    Enhances security management, controlling visitor access.
  • Commercial Buildings:
    Used in malls, office buildings, and other locations for identity verification and access control.
  • Public Services:
    Suitable for hospitals, schools, and other facilities to provide secure identity verification and visitor management.

This 13-inch portrait wall-mounted face recognition password access control device combines advanced technology, powerful features, and flexible applications, delivering an efficient and secure visitor management solution.



Operating System:
  • Optional RK 3568/3288, Quad-core CPU, 2.0/1.8 GHz
  • Android 11/7.1 versions
Configuration: 2GB RAM + 16GB storage
LCD Screen Size: 13.3 inches Screen Resolution: 1920×1080
Viewing Angle: R/L 178° full viewing angle Brightness: 300 cd
Camera:
  • 2MP wide dynamic range, anti-backlight
  • Shooting distance: 0.4–2m
Card Reader​:
  • Optional IC/ID/Second-generation ID card
  • Reading time: <1s
  • Reading distance: 0–30mm
Digital Keypad​: 12-key capacitive touch keypad Working Parameters: Voltage: 12V, Current: 3A
Operating Temperature: -20°C to 70°C
Humidity: 5% to 90% RH
External Interfaces: 2 USB ports, 1 RJ45 port, 1 DC interface, 1 TF card slot, 1 SIM card slot, HDMI, supports external 485/232/relay Body Craftsmanship: Aluminum alloy + sheet metal
Surface Material: Tempered glass front panel Installation Methods: Wall-mounted



JP1310 Portrait Wall-Mounted Face Recognition Password Access Control Device Supports TCP/IP and Wi-Fi network connections 0JP1310 Portrait Wall-Mounted Face Recognition Password Access Control Device Supports TCP/IP and Wi-Fi network connections 1JP1310 Portrait Wall-Mounted Face Recognition Password Access Control Device Supports TCP/IP and Wi-Fi network connections 2JP1310 Portrait Wall-Mounted Face Recognition Password Access Control Device Supports TCP/IP and Wi-Fi network connections 3JP1310 Portrait Wall-Mounted Face Recognition Password Access Control Device Supports TCP/IP and Wi-Fi network connections 4JP1310 Portrait Wall-Mounted Face Recognition Password Access Control Device Supports TCP/IP and Wi-Fi network connections 5
