Smart IoT K-A311D Motherboard with 5T computing power 4GB of RAM and 128GB of storage

Name: Smart IoT K-A311D Motherboard with 5T computing power 4GB of RAM and 128GB of storage
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: K-A311D Motherboard
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	K-A311D Motherboard
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Tiltle:

Smart IoT K-A311D Motherboard With 5T Computing Power 4GB Of RAM And 128GB Of Storage

CPU:

Amlogic A311D, Quad-core Cortex-A73+ Dual-core Cortex-A53 Up To 2.2GHz

GPU:

Mali-G52 MP4

NPU:

Support 5.0Tops Computing Power

RAM:

Standard 2GB LPDDR4, 4GB Optional

ROM:

Standard 16GB EMMC, Up To 128GB

LVDS:

30Pin Dual-channel LVDS Interface, Supporting Up To 1080P Resolution

HDMI:

HDMI 2.1 Interface (Optional), Supporting Up To 4K Resolution

MIPI:

31Pin FPC MIPI-DSI Interface, Supporting Up To 1920* 1200 Resolution (Choose One From MIPI And LVDS)

Headphone/ MIC:

Four-stage 3.5mm Headphone/ Microphone Socket

Line Output:

Left And Right Channel Stereo Line Output

MIC Input:

Differential MIC Input

Amplifier Output:

8 Ohm 6W Dual Audio Amplifier Output

USB Host:

2 External USBs (USB 3.0x 1 And USB 2.0x 1), 7 Built-in USBs (USB 3.0 And USB 2.0x 6)

USB OTG:

1 MicroUSB OTG Interface, Built-in Pin Header

TF Card:

Self-elastic TF Card Socket, Supports 256GB TF Card

Serial Ports:

1-way TTL/RS485, 2-way TTL/RS232, 4-way TTL/RS232 Expansion

RTC:

Low Power Consumption RTC Circuit With CR1220 Battery

12C:

2-way I2C Interface

Backlight:

1-way Backlight Control Interface, Supports Switch And Brightness Adjustment

GPIO:

8-way GPIO Signals

Infrared:

Infrared Receiving Pin Header

Button:

Burn Button And Power Button

Pilot Lamp:

Red Standby Indicator And Green Working Indicator Light

POE:

1-way POE Power Receiving Interface

Ethernet:

1-way 10/100/1000Mbps Adaptive Ethernet

WiFi:

High-performance WiFi, Support 802.11 B/g/n/ac

Bluetooth:

High-performance Bluetooth, Supports BT V4.0

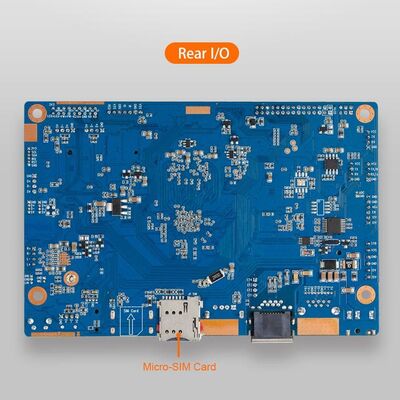

4G/3G:

1-way MiniPCI-E4G Interface, Can Expand 4G/3G Modules, Onboard Self-ejecting Micro-SIM Card Holder

DC Input:

12V DC Socket, Supports 9V-15V Wide Voltage Input

Size:

135mm* 90mm

Thickness:

9mm

Structure Compatible:

Compatible With K-A311D、K-S905、K-3655structure And Interchangeable

Operating Temperature:

-20℃~70℃

Humidity:

0%~95%(No Condensation)

Android System:

Recommend Android 9.0

Packaging Details:

135mm* 90mm* 9mm

Supply Ability:

100+pcs+day

Highlight:

Video Advertising Android Mother Board

4 USB Android Mother Board

EMMC 8G windows motherboard

Product Description

Smart IoT K-A311D Motherboard with 5T computing power 4GB of RAM and 128GB of storage

K-A311D Motherboard Description:

1. The K-A311D motherboard is based on the Amlogic A311D processor and has a built-in neural network processor with 5T computing power.
2. It has rich interfaces and powerful hardware decoding capabilities, can be easily applied to self-service vending machines, intelligent interaction, industrial control equipment, etc.

K-A311D Motherboard Parameters:

Keyword:	Smart IoT Motherboard	CPU:	Amlogic A311D, quad-core Cortex-A73+ dual-core Cortex-A53 up to 2.2GHz
RAM:	Standard 2GB LPDDR4, 4GB optional	ROM:	Standard 16GB EMMC, up to 128GB
HDMI:	HDMI 2.1 interface (Optional), supporting up to 4K resolution	NPU	Support 5.0Tops computing power
Android system:	Recommend Android 9.0	USB Host:	2 external USBs (USB 3.0x 1 and USB 2.0x 1), 7 built-in USBs (USB 3.0 and USB 2.0x 6)

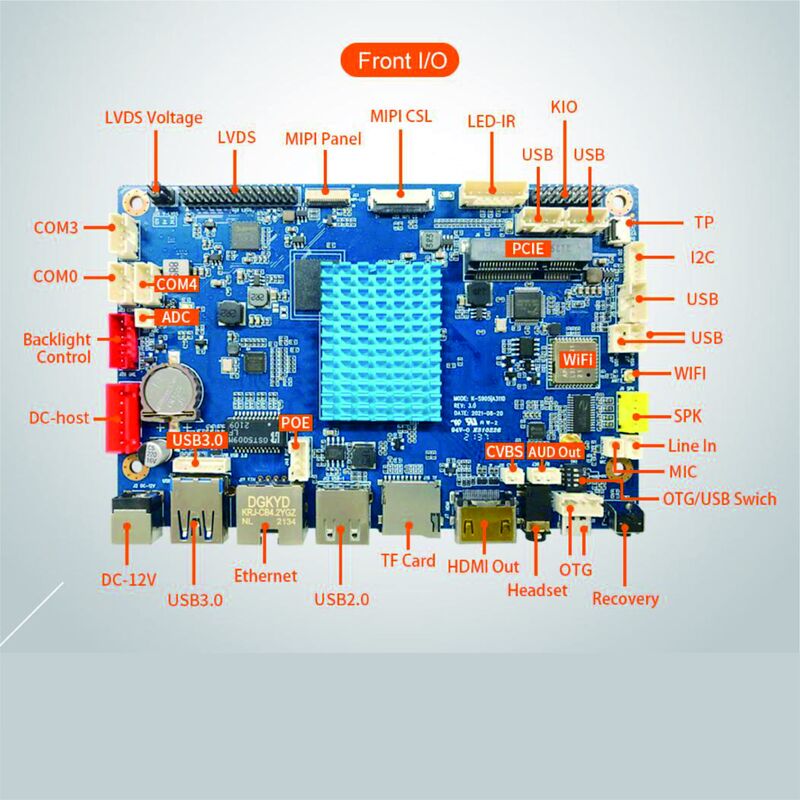

K-A311D Motherboard Features:

Processor: Equipped with an Amlogic A311D processor featuring four Cortex-A73 cores and two Cortex-A53 cores, with a maximum clock speed of up to 2.2GHz, supporting 5T AI computing power NPU.
Video Output: Supports LVDS/HDMI/MIPI output, with HDMI output capable of up to 4K resolution, perfectly supporting 4Kx2K@60fps decoding.
USB Ports: Supports 8 USB ports (1 USB 3.0, 7 USB host).
Serial Ports: Supports 7 serial ports (1 TTL/RS-485 compatible built-in, 2 TTL/RS-232 built-in, 4 extended TTL/RS-232 compatible built-in) and other rich expansion interfaces.
Network Connectivity: Supports Gigabit Ethernet, WiFi single band 2.4GHz, Bluetooth 5.0, 4G/5G expansion, and dual-screen display.
POE Power Supply: Supports IEEE 802.3af/at POE power supply.
Storage Interface: Supports SATA hard disk interface to meet the needs of storage expansion.
Operating System: Comes with Android 9.0 operating system, also supports Linux Buildroot/Debian/Ubuntu systems.
Video Codec: Supports Amlogic Video Engine (AVE-10), capable of decoding 75fps 4Kx2K resolution video, with a complete Trusted Video Path (TVP) for secure applications, and supports full-format, MJPEG streams, H.264, H265-10, VP9, and unlimited size JPEG images, including MVC, MPEG-1/2/4, VC-1/WMV, AVS, AVS+, AVS2 RealVideo.
Audio/Video Input/Output Interfaces: Integrates all standard audio/video input/output interfaces, including HDMI 2.1 transmitter supporting 3D, dynamic HDR, CEC, and HDCP 2.2, stereo audio DAC, CVBS output, 4-channel MIPI DSI interface, multiple TDM, PCM, I2S, and SPDIF digital audio input/output interfaces, and 8-channel far-field PDM digital microphone (DMIC) inputs.

Smart IoT K-A311D Motherboard with 5T computing power 4GB of RAM and 128GB of storage 0
