| Brand Name: | Shi Zun |
| Model Number: | F1-i Board |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
Smart Face Recognition Access Control F1-i Board WIFI Bluetooth Module
F1-i Board Parameters:
|
Keyword: |
Access Control F1-i Board |
CPU: |
Rockchip PX30 quad-core Cortex-A35 @1.5GHz |
|---|---|---|---|
|
RAM: |
1GB (or 2GB optional) LPDDR3 |
ROM: |
16GB eMMC (128GB Max) |
|
USB Host: |
USB 2.0 ports (1 Ext.+6 Int.) |
Camera: |
1x 40-pin MIPIFPC+ DVP binocular camera interface |
|
Android: |
8.1 (recommended) |
Serial Port: |
1xTTL/RS-232/RS-485, 1xTTL/RS-232, 1xTTL |
F1-i Board Description:

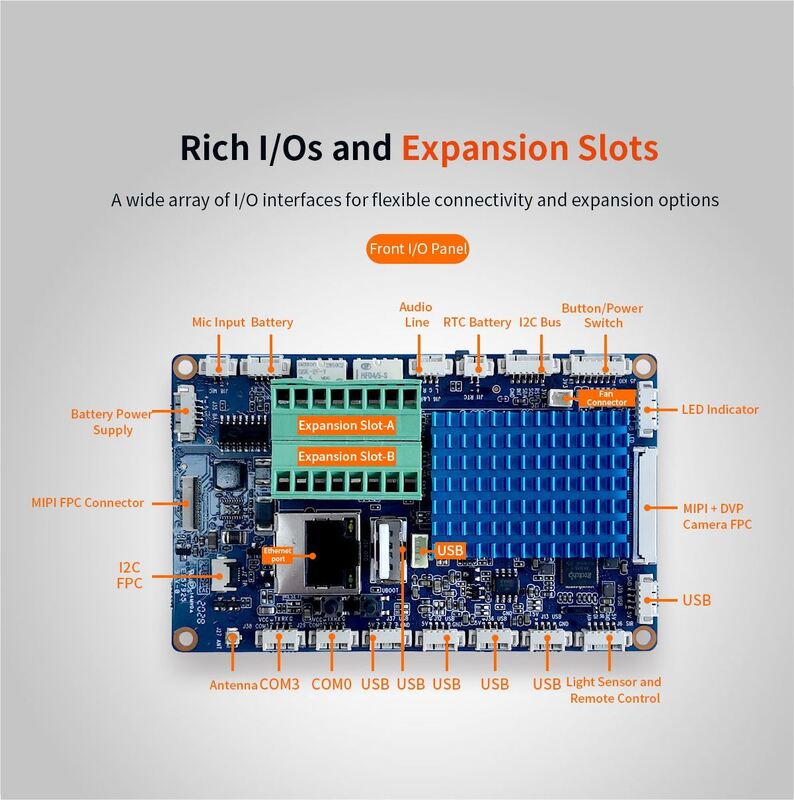

The F1i board is powered by Rockchip PX30 quad-core Cortex-A35 processor, with a maximum clock speed of 1.5GHz. The integrated Mali Dvalin-2EE GPU supports OpenGL ES3.2, Vulkan 1.0, and OpenCL 2.0, enabling a perfectly smooth hardware decoding of 1080p resolution videos. With a variety of onboard display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the security and access control sector.
|
|
| Brand Name: | Shi Zun |
| Model Number: | F1-i Board |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 100mm* 62mm* 25mm |
| Payment Terms: | T/T |
Smart Face Recognition Access Control F1-i Board WIFI Bluetooth Module
F1-i Board Parameters:
|
Keyword: |
Access Control F1-i Board |
CPU: |
Rockchip PX30 quad-core Cortex-A35 @1.5GHz |
|---|---|---|---|
|
RAM: |
1GB (or 2GB optional) LPDDR3 |
ROM: |
16GB eMMC (128GB Max) |
|
USB Host: |
USB 2.0 ports (1 Ext.+6 Int.) |
Camera: |
1x 40-pin MIPIFPC+ DVP binocular camera interface |
|
Android: |
8.1 (recommended) |
Serial Port: |
1xTTL/RS-232/RS-485, 1xTTL/RS-232, 1xTTL |
F1-i Board Description:
The F1i board is powered by Rockchip PX30 quad-core Cortex-A35 processor, with a maximum clock speed of 1.5GHz. The integrated Mali Dvalin-2EE GPU supports OpenGL ES3.2, Vulkan 1.0, and OpenCL 2.0, enabling a perfectly smooth hardware decoding of 1080p resolution videos. With a variety of onboard display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the security and access control sector.
