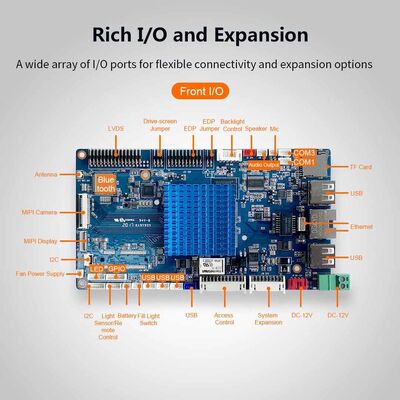

Multiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding support

Name: Multiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding support
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: F3X Board
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	F3X Board
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

CPU:

Rockchip RK3288 Quad-core Cortex-A17@1.6GHz

GPU:

Quad-core Mali-T764

System Memory:

2GB(or 4GB Optional) LPDDR3

Storage:

16GB EMMC (128GB Max)

MIPI-DSI:

31-pin FPC MIPI-DSI Interface/ 1920x 1200 Resolution

LVDS:

30-pin Dual LVDS Interface, Up To 1080p Resolution

EDP:

Dual- EDP Interface, Up To 1080p Resolution

Audio Line Out:

Left/ Right Channel Output

Mic:

Single-ended Input

Power Amplifier:

8 Ohms, 10W Dual Audio Power Amplifier Output

USB Host:

USB 2.0 Ports (2 Ext.+ 4 Int.+2 Port Expansions)

USB OTG:

1x OTG Port

TF Card:

Push-push Type TF Card Slot (128GB Max)

Serial Port:

1xTTL/RS-232/RS-485, 3xTTL/RS-232

RTC:

Low Power RTC With A CR1220 Battery

I2C:

1x 12C Pin Header

Backlight:

Backlight Control Interface That Turns The Backlight On/ Off And Adjusts The Brightness Level

GPIO:

5 X GPIO Ports

IR:

IR Pin Header

Button:

Burn Key And Power/ Reset Pin Header

Indicator Light:

Standby/ Network Connectivity/ Run Tri-color Indicator Lights

Ethernet:

10/ 100Mbps Adaptive Ethernet Port

WI-Fi:

802.11 B/ G/ N

Bluetooth:

BT V4.0

4G/3G:

1x Mini PCle Port; 4G/3G Expandable Module; Nano-SIM Card Connector (push-push Type)

DC Input:

12V DC Socket (9V-15V Wide Voltage)

Dimensions:

145mm* 80mm

Thickness:

9mm

Operating Temperature:

0℃-70℃

Humidity:

0%-95% (non-condensing)

Android:

5.1(recommended), 6.0/7.1 (optional)

Linux:

Ubuntu 18.04, Debian 9, Buildroot+QT 2018.02 (optional)

Origin:

China

Packaging Details:

145mm* 80mm* 9mm

Supply Ability:

100+pcs+day

Highlight:

Dual HD wifi bluetooth module

windows wifi bluetooth module

Dual HD windows motherboard

Product Description

Multiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding support

Access Control Board Parameters:

Keyword:	Access Control Board	CPU:	Rockchip RK3288 quad-core Cortex-A17@1.6GHz
System Memory:	2GB(or 4GB optional) LPDDR3	Storage:	16GB eMMC (128GB Max)
MIPI-DSI:	31-pin FPC MIPI-DSI interface \| 1920x 1200 resolution	LVDS:	30-pin Dual LVDS interface, up to 1080p resolution
EDP:	Dual-EDP interface, up to 1080p resolution	Audio Line Out:	Lef/Right channel output
