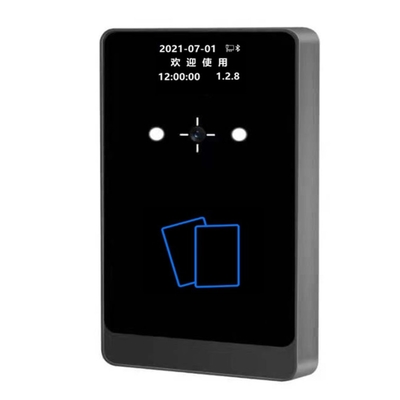

ASK87EG QR Code Access Control Integrated Machine 4G Communication FDD (B1/B3/B5/B8)

Name: ASK87EG QR Code Access Control Integrated Machine 4G Communication FDD (B1/B3/B5/B8)
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: ASK87EG
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	ASK87EG
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Keywords:

Qr Code Access Control

Processor:

Xtensa 32-bit LX6 Dual-core Processor, With A Main Frequency Of 600 MIPS

Operating System:

FreeRTOS Embedded System

Recognition Support:

QR Code, Bluetooth, IC Card, CPU Card, NFC

Protocol Support:

HTTP, MQTT, TCP/IP

External Interfaces:

Dry Contact Output, Exit Button Input, Door Magnet Input

4G Communication:

LTE Cat.1, TDD (B34/B38/B39/B40/B41) + FDD (B1/B3/B5/B8)

Supported QR Code Formats:

PDF417 / Data Matrix / QR Code

Code Reading Angle:

Elevation And Tilt ±65°, Rotation 360°

Scanning Angle:

Horizontal 75°, Vertical 55°, Diagonal 85°

Reading Speed:

< 0.2 Seconds

Scanning Distance:

5-15 Cm

Interaction Methods:

Buzzer, OLED Display, LED Backlight

Input Voltage:

DC12V/500mA (Supports 5-30V)

Bluetooth Version:

BLE 4.1

User Storage:

60,000 Users

Waterproof Level:

IPX65

Tempered Glass Panel:

Operating Environment:

Temperature: -20°C To 70°C, Humidity 5%-95%

Product Dimensions:

108* 63.8* 13 (mm)

Product Weight:

110g

Packaging Details:

108* 63.8* 13 (mm)

Supply Ability:

100+pcs+day

Product Description

ASK87EG QR Code Access Control Integrated Machine 4G Communication FDD (B1/B3/B5/B8)

ASK87EG Qr Code Access Control Device Description:

Network Options: 4G (optional) / Ethernet / WIFI
Access Methods: QR Code / IC Card / CPU Card / ID Card / Mobile NFC / Bluetooth
Communication Protocols: HTTP, MQTT, TCP/IP; Cloud Platform Management, Mini Program Remote Management
Features: Remote Access, Customizable Anti-Copying
Supports Secondary Development for Third-Party Platform Integration
Material: Tempered Glass Panel / ABS Casing / Waterproof

ASK87EG Qr Code Access Control Device Parameters:

Processor	Xtensa 32-bit LX6 Dual-Core Processor, Main Frequency 600 MIPS
Operating System	FreeRTOS Embedded System
Recognition Support	QR Code, Bluetooth, IC Card, CPU Card, NFC, Touch Password
Protocol Support	HTTP, MQTT, TCP/IP
External Interfaces	Dry Contact Output, Exit Button Input, Door Sensor Input
4G Communication	LTE Cat.1, TDD (B34/B38/B39/B40/B41) + FDD (B1/B3/B5/B8)
Code Reading Angle	Elevation and Tilt ±65°, Rotation 360°
Scanning Angles	Horizontal 75°, Vertical 55°, Diagonal 85°
Reading Speed	<0.2 seconds
Product Dimensions	108* 63.8* 13 (mm)
Product Weight	110g
Material	Tempered Glass Panel / ABS Casing / Waterproof
