| Brand Name: | Shi Zun |
| Model Number: | ITX-3399 Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |

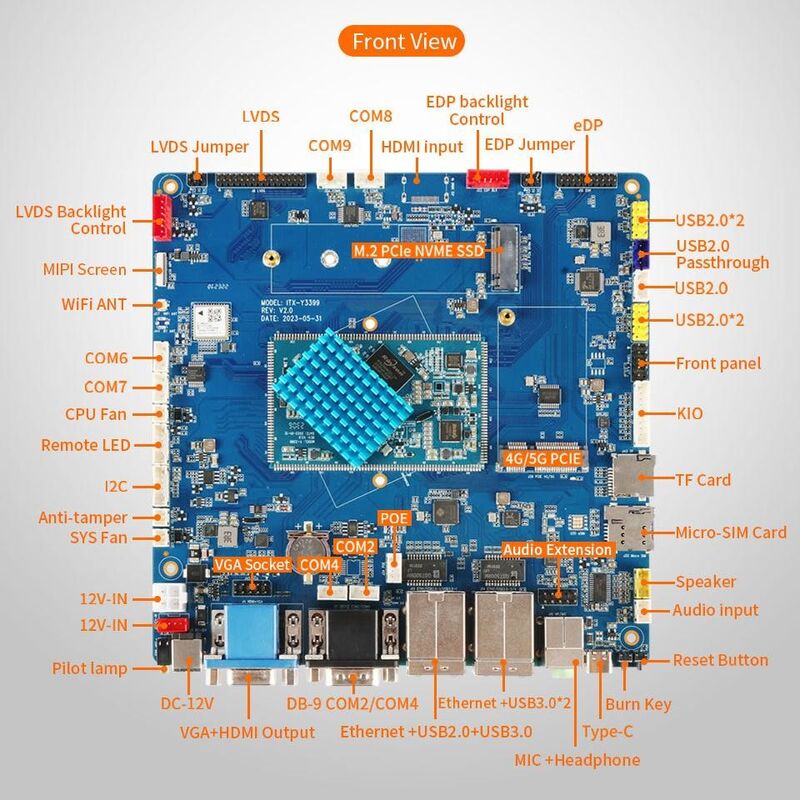

ITX-3399 Intelligent Industrial Computer Motherboard 8Ω·6W dual-channel audio amplifier output
ITX-3399 Intelligent Industrial Computer Motherboard Description:
ITX-Y3399 is based on Rockchip RK3399 hexa-core processor with up to 1.8GHz main frequency, boasting high performance computing and data processing capabilities. Adopts standard Mini-ITX board design, compatible with X86 motherboard structure. Supports dual Gigabit Ethernet, WiFi6 and 4G/5G module expansion. Onboard M.2 interface, expandable NVME SSD with high speed read/write and low power consumption. And with 2-channel isolated DB9 serial port to meet the requirements of industrial environment. Widely used in industrial control all-in-one machine, computer all-in-one machine and touch all-in-one machine and other scenes.
ITX-3399 Intelligent Industrial Computer Motherboard Parameters:
|
Keyword: |
Intelligent Industrial Computer Motherboard |
CPU: |
Rockchip RK3399, Dual Core Cortex-A72+ Quad Core Cortex-A53, Clocked Up to 1.8GHz |
|---|---|---|---|
| GPU: | Mali-T860 | TF Card: | Self popping TF card socket, supporting up to 256GB TF cards |
|
RAM: |
Standard 2GB LPDDR4,4GB Optional |
ROM: |
Standard 16GB EMMC, up to 128GB |
|
USB Host: |
4 external USB (USB 3.0x3, USB 2.0x1), 6 build in USB (USB2.0x 5,USB2.0 through x1) |
Serial Port: |
2-way DB9 serial ports, Signal and power isolation (multiplex), 2 TTL/RS232/RS485 |
| Headphone: | Left and right channel headphone output (audio socket) | Ethernet: | 2-way 10/100/1000Mbps Adaptive Ethernet |
| 4G/5G: | Build in Mini PCle interface,External expansion4G/5G module, on- board self-ejecting Micro SIM card holder | USB OTG: | Recommended Android7.1, Android 8.1/ Android 9.0 optional |
|
Bluetooth: |
High-performance Bluetooth, Support BT V5.0 |
Android: |
Android system Recommend Android 9.0 |
ITX-3399 Intelligent Industrial Computer Motherboard Features:
Processor: Powered by the Rockchip RK3399, a high-performance 64-bit ARM processor with dual Cortex-A72 and quad Cortex-A53 CPUs, capable of handling demanding tasks efficiently.
Graphics: Features an ARM Mali-T860 MP4 GPU, which supports 4K video decoding and provides robust graphics capabilities for visualization and other graphics-intensive applications.
Memory: Supports DDR3/DDR3L/DDR4 memory, allowing for up to 4GB or 8GB of RAM, depending on the configuration, to ensure smooth multitasking and application performance.
Storage: Offers various storage options, including eMMC, SATA, and mSATA, for flexible data storage solutions.
Connectivity: Provides multiple Gigabit Ethernet ports for reliable network connectivity, essential for industrial IoT applications.
I/O Ports: Includes a variety of I/O options such as HDMI, DisplayPort, USB 3.0, and serial ports (UART), which are crucial for connecting peripherals and external devices.
Expansion Slots: Features mini PCIe and/or full-size PCIe slots for adding additional functionality like Wi-Fi, 4G/LTE modules, or other specialized expansion cards.
Operating System Support: Supports various operating systems, including Linux and Android, providing flexibility in software development and customization.
Industrial Grade: Designed to meet industrial standards, with resistance to extreme temperatures, humidity, and vibration, ensuring reliable operation in harsh environments.
Reliability and Longevity: Built with industrial-grade components to ensure a long lifespan and minimal maintenance, which is critical for industrial applications where downtime is costly.
Power Efficiency: Offers power-efficient operation, which is important for systems that may be deployed in energy-sensitive environments or for extended periods.
Security Features: May include hardware-based security features to protect against unauthorized access and data breaches.
Form Factor: The ITX form factor is compact yet offers a high level of functionality, making it suitable for space-constrained industrial settings.
Customizability: Often, industrial motherboards like the ITX-3399 can be customized to meet specific project requirements, including BIOS/UEFI modifications and additional hardware features.
Support and Documentation: Comes with comprehensive support and documentation to assist developers in integrating the motherboard into their systems.
|
|
