| Brand Name: | Shi Zun |
| Model Number: | ITX-Z3588 Motherboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |

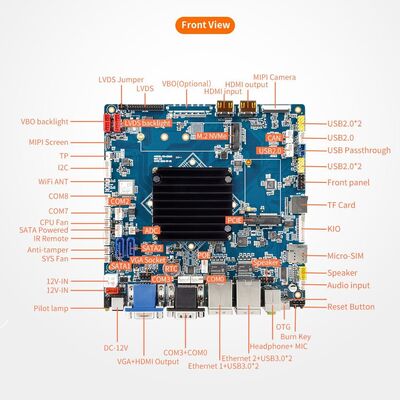

ITX-Z3588 Intelligent Industrial Computer Motherboard 1-way anti-tamper control interface
ITX-Z3588 Intelligent Industrial Computer Motherboard Description:
ITX-Z3588 adopts Mini-ITX form factor design, equipped with octa-core RK3588 processor and built-in 6T computing power NPU, which can meet the computing power needs of most AI models. This motherboard is equipped with SATA3.0 and M.2 PCIE NVME interfaces to facilitate flexible storage expansion. The on-board isolated serial port meets the strict selection requirements of industrial environments. It also supports dual-way HDMI, LVDS, VBO (optional) and other display interfaces, up to 8K resolution, and supports three screens with different displays. It is widely used in scenarios such as smart industrial computers, industrial control all-in-one computers, and touch all-in-one computers.
ITX-Z3588 Intelligent Industrial Computer Motherboard Parameters:
|
Keyword: |
Intelligent Industrial Computer Motherboard |
CPU: |
Rockchip RK3588,Quad Core Cortex-A76+Quad Core Cortex-A55,clocked at up to 2.4GHz |
|---|---|---|---|
| GPU: | Mali-G610 MC4 | NPU: | Supports 6Tops of computing power, Triple-Core architecture, supports int4/ int8/ int16/ FP16/ BF16/ TF32 |
|
RAM: |
Standard 4GB LPDDR4, 8GB/ 16GB/ 32GB Optional |
ROM: |
Standard 32GB eMMC5.1, 32GB/ 64GB/ 128GB Optional |
|
USB Host: |
4 external USB (USB3.0x 4), 3 built-in USB (USB2.0x 2, USB 2.0 Throughx 1), 2 front USB (USB 2.0x 4) |
Serial Port: |
2 DB9 serial ports with signal and power isolation (multiplexing), 2 TTL/RS232/RS485, 2 TTL/RS232, 1TTL |
| VGA: | VGA interface, Support Up to 1080P | VBO: | 51Pin VBO interface (Optional), Support 4K resolution |
| Anti-tamper Control: | 1-way anti-tamper control interface | M.2 PCIE NVME: | 1-way M.2 PCIE NVME SSD Socket, support M.2 NVME 2242/2260/2280 SSD |
|
Front Panel: |
1-way F_PANEL interface, used to connect to the double row of pins on the front panel |
Android: |
Recommend Android 12.0 |
ITX-Z3588 Intelligent Industrial Computer Motherboard Features:
Processor: Equipped with the RockChip RK3588 SoC, featuring an octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) CPU with 8nm advanced process technology, operating at speeds up to 2.4GHz.
GPU: Integrated ARM Mali-G610 MP4 quad-core GPU, supporting OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, with a graphics processing capability of 450 GFLOPS.
NPU: NPU computing power up to 6 TOPS, supporting INT4/INT8/INT16 mixed operations, capable of realizing network model conversion based on TensorFlow / MXNet / PyTorch / Caffe and other series of frameworks.
ISP: Integrated 48MP ISP with HDR&3DNR, providing powerful image signal processing capabilities.
Encoding and Decoding Capability: Supports 8K@60fps H.265/VP9/AVS2 video decoding and 8K@30fps H.264 AVC/MVC video encoding, capable of up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding.
Memory: Supports 4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (up to 32GB can be configured).
Storage: Supports 16GB/32GB/64GB/128GB eMMC, as well as 1 × M.2 SATA3.0 interface and 4 × standard SATA3.0 interfaces for expandable multi-disk storage.
Wireless Networking: Supports dual-band 2.4GHz/5GHz Wi-Fi6 and Bluetooth 5.0, with the option to expand 5G/4G LTE.
Ethernet: Provides 2 × Gigabit Ethernet (RJ45), with one port supporting POE power supply, with a maximum output power of 60W.
Video Input and Output: Supports 1 × HDMI-IN (4K@60fps), 1 × HDMI2.1 (8K@60fps or 4K@120fps), 2 × MIPI-DSI (4K@60fps), 1 × DP1.4 (8K@30fps, shared with USB 3.0) and other video input and output interfaces.
Audio: Provides audio output and input interfaces, including I2S, SPDIF, PDM, etc.
PCIE: Provides 1 × PCIe3.0 (4Lane) for expanding standard PCIe3.0 devices.
USB: Offers multiple USB interfaces, including 4 × USB3.0 and 1 × USB-C (USB3.0 / DP1.4).
Power Supply: Supports various power supply methods, including DC12V~24V wide voltage input, case power supply 12V input (standard ATX power interface - 8Pin), and POE 48V power input (up to 60W supported).
Operating System Support: Supports Android 12.0, Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux, and various other operating systems.
Size: Standard Mini-ITX size, 17cm×17cm, compatible with universal ITX computer cases.
Environmental Adaptability: Operating temperature range is -20℃-60℃, storage temperature is -20℃-70℃, and storage humidity is 10%-80%.
|
|
