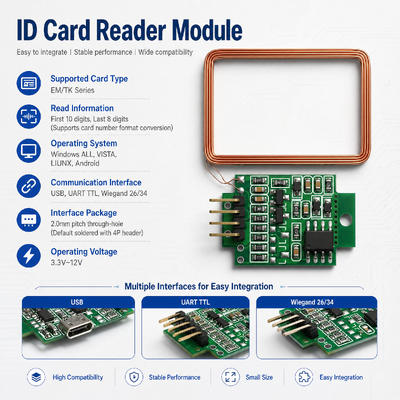

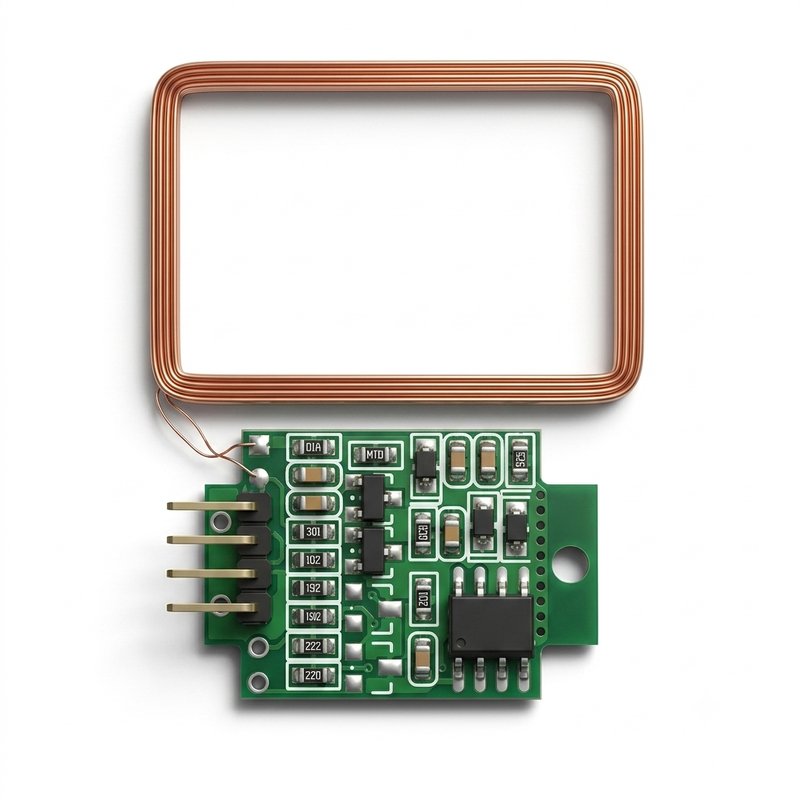

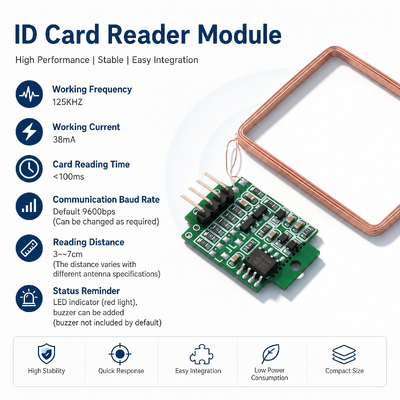

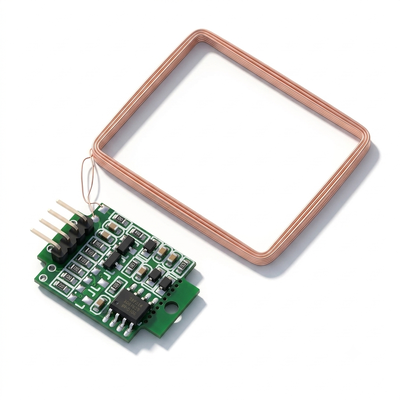

D5-WE-UH-00 ID Card Reader Module RFID Reader 125kHz Fingerprint ID Module Access Control Reader Head UID Reading USB Interface

Name: D5-WE-UH-00 ID Card Reader Module RFID Reader 125kHz Fingerprint ID Module Access Control Reader Head UID Reading USB Interface
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: D5-WE-UH-00
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	D5-WE-UH-00
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Contact IC Card Reader Module

Supported Card Types:

EM/TK Series

Reading Information:

Front 10 Digits, Back 6 Digits (supports Card Number Format Conversion)

Operating Systems:

Windows ALL, VISTA, LINUX, Android

Communication Interface:

USB, UART TTL, Wiegand 26/34

Connector Type:

2.0mm Pin Spacing (Default 4P Pin Header)

Working Voltage:

3.3V~12V (Refer To Detailed Voltage Values In The Above Table)

Working Frequency:

125KHZ

Working Current:

38mA

Reading Time:

<100ms

Communication Speed:

Default 9600bps (customizable Upon Request)

Reading Distance:

3~7cm (distance Varies Depending On Card Size And Manufacturer)

Status Indicators:

LED Indicator (red Light), Supports Buzzer Control (default Not Included)

Module Dimensions:

24.5mm*16mm (includes Mounting Holes)

Antenna Dimensions:

Outer Dimensions 28.4mm*32.4mm, Thickness 1.2mm (default Includes Standard Antenna)

Packaging Details:

24.5mm*16mm (includes mounting holes)

Supply Ability:

100+pcs+day

Product Description

D5-WE-UH-00 ID Card Reader Module RFID Reader 125kHz Fingerprint ID Module Access Control Reader Head UID Reading USB Interface

D5-WE-UH-00 Card Reader Module Features:

Plug-and-play, no driver installation required.
Embedded composite microprocessor technology.
Enhanced microcontroller system improves firmware code stability, effectively preventing data overflow. It optimizes instruction execution time and data interaction rhythm during operations and data processing.
Low power consumption.
Strong anti-interference capability, suitable for various environments.
High-speed transmission (data response time less than 100ms).
Wireless sensing (contactless RF technology).
System compatibility (Windows, Android).

Keyword:	Card Reader Module	Operating Systems:	Windows ALL, VISTA, LINUX, Android
Communication Interface:	USB, UART TTL, Wiegand 26/34	Working Voltage:	3.3V~12V (Refer to detailed voltage values in the above table)
Communication Speed:	Default 9600bps (customizable upon request)	Reading Distance:	3~7cm (distance varies depending on card size and manufacturer)
Module Dimensions:	24.5mm*16mm (includes mounting holes)	Antenna Dimensions:	Outer dimensions 28.4mm*32.4mm, thickness 1.2mm (default includes standard antenna)
