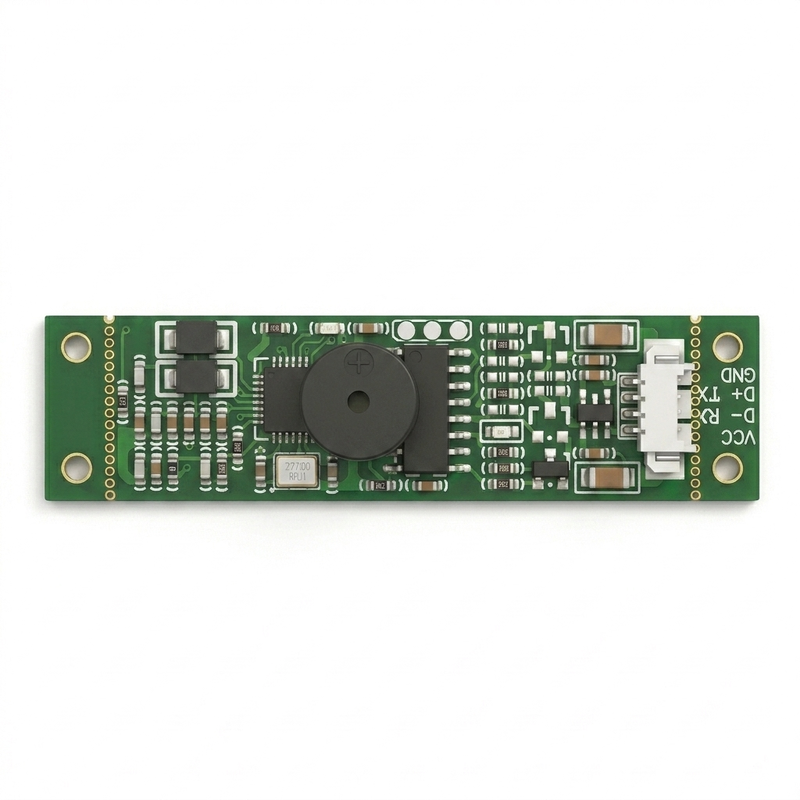

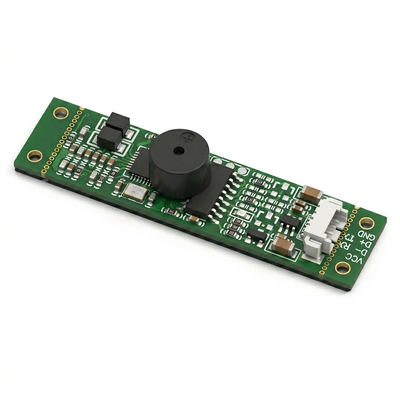

M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface

Name: M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: M10-WD-UH-00
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	M10-WD-UH-00
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

IC Card Reader Module

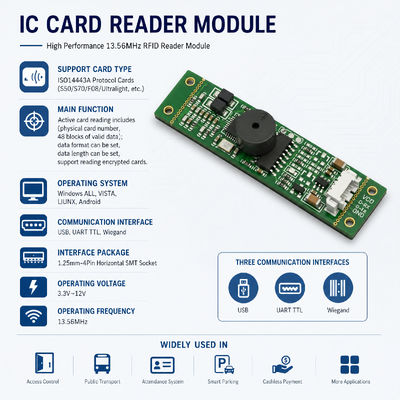

Supported Card Types:

ISO14443A Protocol Cards (S50/S70/MF F08/Ultralight, Etc.)

Main Features::

Reads Card Details, Including Card Serial Number And 48-byte Effective Data. Data Format And Length Can Be Customized, And Encryption Can Be Set.

Operating Systems:

Windows ALL, VISTA, LINUX, Android

Communication Interface:

USB, UART TTL, Wiegand

Connector Type:

1.25mm 4-pin Fixed Sticker Plug-in

Working Voltage:

3.3V~12V (For Detailed Voltage Ranges, See Model-specific Information Above.)

Working Frequency:

13.56MHz

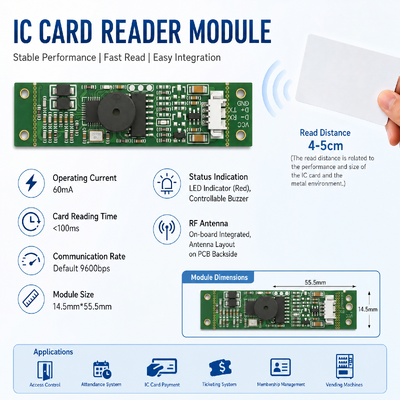

Working Current:

60mA

Reading Time:

<100ms

Communication Speed:

Default 9600bps (customizable Upon Request)

Reading Distance:

4-5cm (Varies Depending On The Performance, Size, And Surrounding Environment Of The RFID Card.)

Status Indicators:

LED Indicator (red Light), Buzzer Optional

Module Dimensions:

14.5mm×55.5mm

Antenna Dimensions:

Integrated Onboard; Antenna Is Part Of The PCB Design.

Packaging Details:

14.5mm×55.5mm

Supply Ability:

100+pcs+day

Product Description

M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface

M10-WD-UH-00 Card Reader Module Features:

Supported Card Types: ISO14443A protocol cards (S50/S70/F08/Ultralight).
Plug-and-play, no driver installation required.
IC card (13.56MHz high-frequency card) complies with ISO14443A protocol, commonly used for M1/S50 cards and F08 cards. It features 1K-byte storage capacity with 16 sectors and 64 blocks. Sector 0 block 0 serves as a physical block, supporting functions like data storage encryption and sector encryption.
Embedded composite microprocessor technology.
Enhanced microcontroller system improves firmware code stability, effectively preventing data overflow. It optimizes instruction execution time and data interaction rhythm during operations and data processing.
Low power consumption.
Strong anti-interference capability, suitable for various environments.
High-speed transmission (data response time less than 100ms).
Wireless sensing (contactless RF technology).
System compatibility (Windows, Android).

Keyword:	Card Reader Module	Operating Systems:	Windows ALL, VISTA, LINUX, Android
Communication Interface:	USB, UART TTL, Wiegand	Operating Voltage:	3.3V~12V (For detailed voltage ranges, see model-specific information above.)
Communication Speed:	Default 9600bps (customizable upon request)	Reading Distance:	4-5cm (Varies depending on the performance, size, and surrounding environment of the RFID card.)
Module Dimensions:	14.5mm×55.5mm	Antenna Dimensions:	Integrated onboard; antenna is part of the PCB design.
