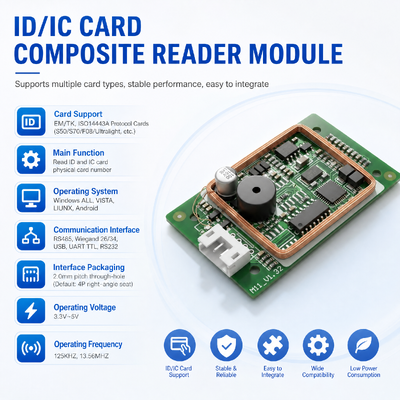

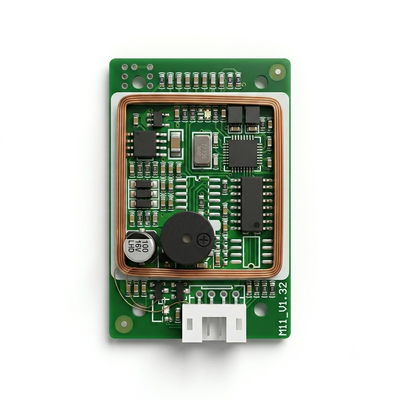

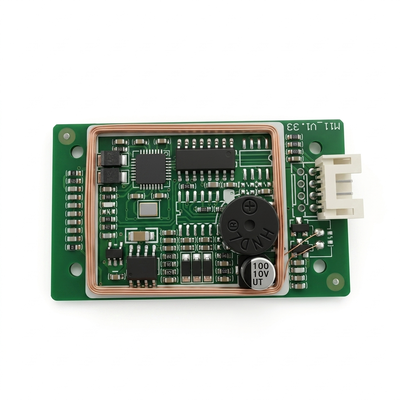

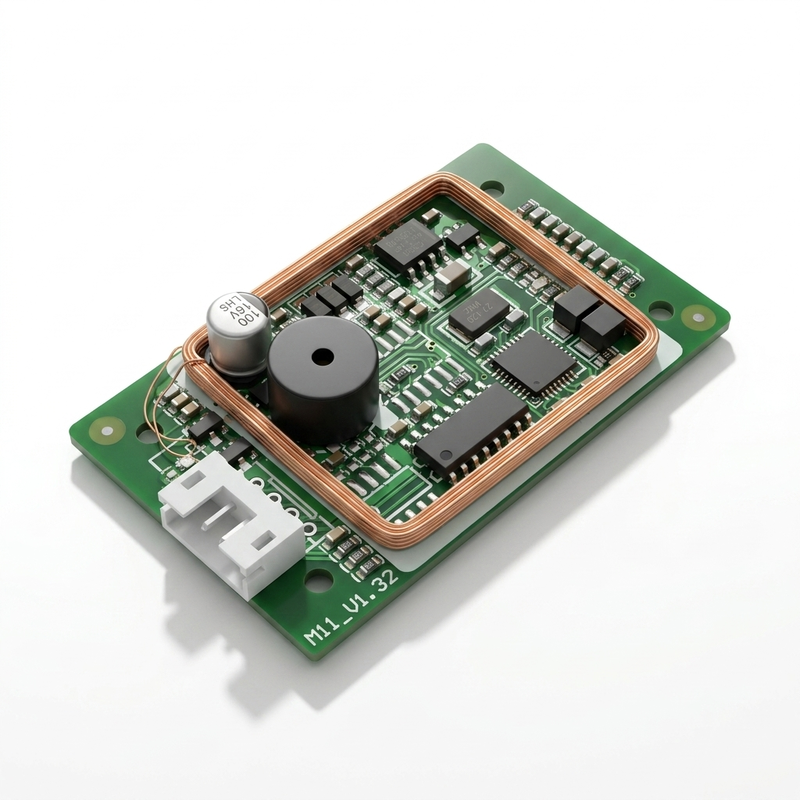

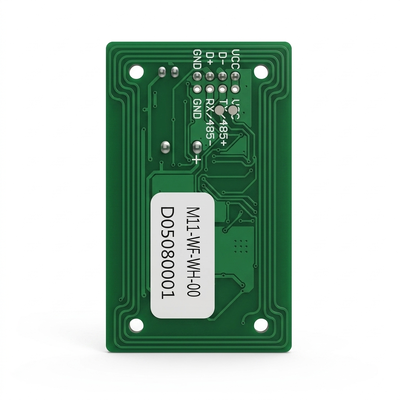

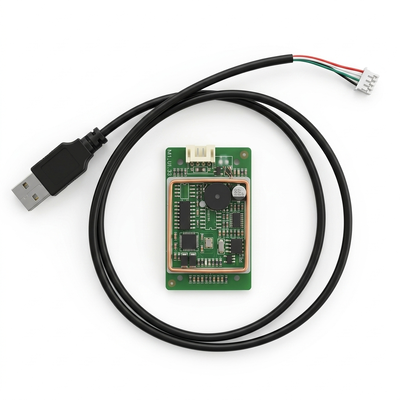

M11-WF-UH-00 RFID Card Reader Module Dual-Frequency Combined ID Card + IC Card Reader USB Plug-and-Play Driver-Free

Name: M11-WF-UH-00 RFID Card Reader Module Dual-Frequency Combined ID Card + IC Card Reader USB Plug-and-Play Driver-Free
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: M11-WF-UH-00
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	M11-WF-UH-00
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

IDIC Multifunctional Card Reader Module

Supported Card Types:

EM/TK, ISO14443A Series (e.g., S50/S70/F08/Ultralight, Etc.)

Main Features::

Reads ID And IC Card Serial Numbers.

Operating Systems:

Windows ALL, VISTA, LINUX, Android

Communication Interface:

USB, UART TTL, RS232, RS485, Wiegand 26/34

Connector Type:

2.0mm Pin Spacing (default Is PH2.0-4P Socket).

Working Voltage:

3.3V~5V (refer To The Table Above For Detailed Voltage Values).

Working Frequency:

125KHz, 13.56MHz

Working Current:

60mA

Reading Time:

<100ms

Communication Speed:

9600bps (customizable Upon Request).

Reading Distance:

2.5~3cm (varies Depending On Card Size And Environment).

Status Indicators:

LED Indicator (red), Controllable Buzzer.

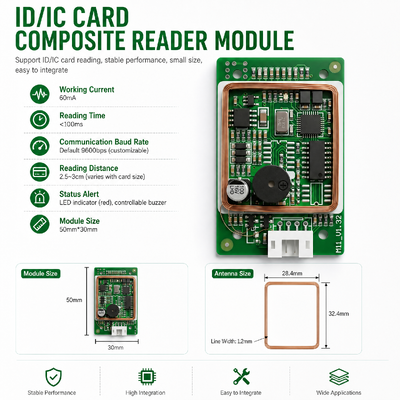

Module Dimensions:

50mm × 30mm

Antenna Dimensions:

External: 28.4mm × 32.4mm × 1.2mm

Packaging Details:

50mm × 30mm

Supply Ability:

100+pcs+day

Product Description

M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface

M10-WD-UH-00 Card Reader Module Features:

Supported Card Types: ISO14443A protocol cards (S50/S70/F08/Ultralight).
Plug-and-play, no driver installation required.
IC card (13.56MHz high-frequency card) complies with ISO14443A protocol, commonly used for M1/S50 cards and F08 cards. It features 1K-byte storage capacity with 16 sectors and 64 blocks. Sector 0 block 0 serves as a physical block, supporting functions like data storage encryption and sector encryption.
Embedded composite microprocessor technology.
Enhanced microcontroller system improves firmware code stability, effectively preventing data overflow. It optimizes instruction execution time and data interaction rhythm during operations and data processing.
Low power consumption.
Strong anti-interference capability, suitable for various environments.
High-speed transmission (data response time less than 100ms).
Wireless sensing (contactless RF technology).
System compatibility (Windows, Android).

Keyword:	Card Reader Module	Operating Systems:	Windows ALL, Vista, Linux, Android
Communication Interface:	USB, UART TTL, RS232, RS485, Wiegand 26/34	Operating Voltage:	3.3V~5V (refer to the table above for detailed voltage values).
Communication Speed:	9600bps (customizable upon request).	Reading Distance:	2.5~3cm (varies depending on card size and environment).
Module Dimensions:	50mm × 30mm	Antenna Dimensions:	External: 28.4mm × 32.4mm × 1.2mm
