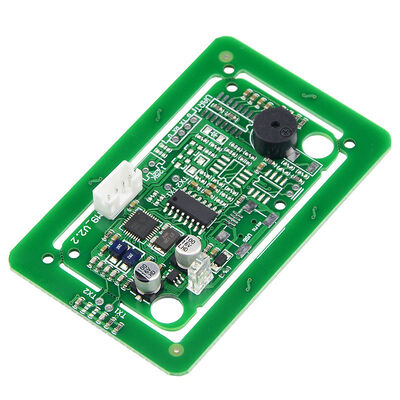

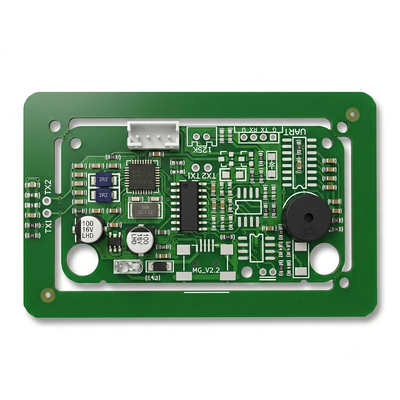

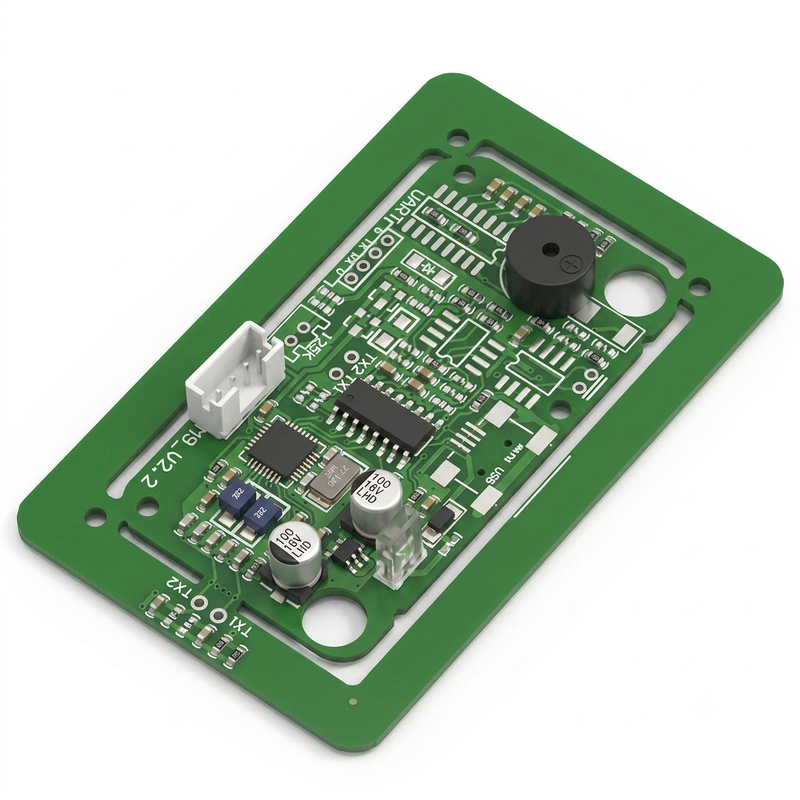

M9-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface

Name: M9-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: M9-WD-UH-00
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	M9-WD-UH-00
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Contact IC Card Reader Module

Supported Card Types:

ISO14443A Protocol Cards (S50/S70/F08/Ultralight, Etc.), ISO14443B

Main Features::

Reads Card Data, Including Physical Card Numbers And 48-byte Valid Data; Data Format And Length Are Customizable; Card Read Keys Can Be Configured.

Operating Systems:

Windows ALL, VISTA, LINUX, Android

Communication Interface:

USB, UART TTL, RS232, RS485

Connector Type:

2.0mm Pin Spacing (default PH-4P Direct Plug)

Working Voltage:

3.3V~5V (Refer To The Specifications For Detailed Voltage Values)

Working Frequency:

13.56MHz

Working Current:

60mA

Reading Time:

<100ms

Communication Speed:

Default 9600bps (customizable Upon Request)

Reading Distance:

5-8cm (Varies Based On Card Type, Size, And Metal Environmental Interference)

Status Indicators:

LED Indicator (Blue Light), Controllable Buzzer

Module Dimensions:

72mm*45mm

Antenna Dimensions:

Default Integrated; Optional Separate Type

Packaging Details:

72mm*45mm

Supply Ability:

100+pcs+day

Product Description

M9-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface

M9-WD-UH-00 Card Reader Module Features:

RF Antenna: Default integrated design, detachable option available.
Plug-and-play, no driver installation required.
IC card (13.56MHz high-frequency card) complies with ISO14443A protocol, commonly used for M1/S50 cards and F08 cards. It features 1K-byte storage capacity with 16 sectors and 64 blocks. Sector 0 block 0 serves as a physical block, supporting functions like data storage encryption and sector encryption.
Embedded composite microprocessor technology.
Enhanced microcontroller system improves firmware code stability, effectively preventing data overflow. It optimizes instruction execution time and data interaction rhythm during operations and data processing.
Low power consumption.
Strong anti-interference capability, suitable for various environments.
High-speed transmission (data response time less than 100ms).
Wireless sensing (contactless RF technology).
System compatibility (Windows, Android).

Keyword:	Card Reader Module	Operating Systems:	Windows ALL, VISTA, LINUX, Android
Communication Interface:	USB, UART TTL, RS232, RS485	Operating Voltage:	3.3V~5V (Refer to the specifications for detailed voltage values)
Communication Speed:	Default 9600bps (customizable upon request)	Reading Distance:	5-8cm (Varies based on card type, size, and metal environmental interference)
Module Dimensions:	72mm*45mm	Antenna Dimensions:	Default integrated; optional separate type
