M8-WD-UH-00 RFID Card Reader Module IC Card Reader S50 Contactless 14443A Protocol IC Card Issuer USB Interface

Name: M8-WD-UH-00 RFID Card Reader Module IC Card Reader S50 Contactless 14443A Protocol IC Card Issuer USB Interface
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: M8-WD-UH-00
Price: Negotiable USD
Availability: InStock

Brand Name:	Shi Zun
Model Number:	M8-WD-UH-00
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Contact IC Card Reader Module

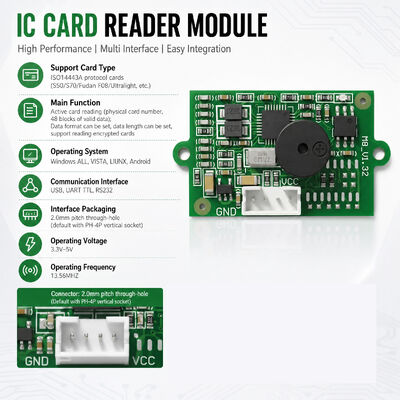

Supported Card Types:

ISO14443A Protocol Cards (S50/S70/F08/Ultralight, Etc.)

Main Features::

Supports Active Card Reading (physical Card Number, 48-byte Effective Data), Configurable Data Formats, Adjustable Data Lengths, And Key Configuration.

Operating Systems:

Windows ALL, VISTA, LINUX, Android

Communication Interface:

USB, UART TTL, RS232

Connector Type:

2.0mm Pin Spacing (default PH-4P Direct Plug)

Working Voltage:

3.3V~12V (Refer To Detailed Voltage Values In The Above Table)

Working Frequency:

13.56MHz

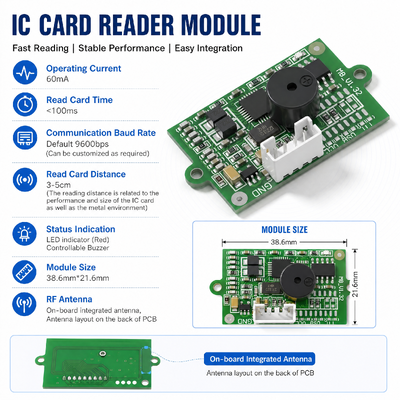

Working Current:

60mA

Reading Time:

<100ms

Communication Speed:

Default 9600bps (customizable Upon Request)

Reading Distance:

3~5cm (reading Distance Is Related To The Performance And Size Of The IC Card And Environmental Factors)

Status Indicators:

LED Indicator (red Light), Supports Buzzer Control (default Not Included)

Module Dimensions:

38.6mm*21.6mm

Antenna Dimensions:

Integrated With The Board, The Antenna Layout Is On The PCB Surface

Packaging Details:

38.6mm*21.6mm

Supply Ability:

100+pcs+day

Product Description

M8-WD-UH-00 RFID Card Reader Module IC Card Reader S50 Contactless 14443A Protocol IC Card Issuer USB Interface

M8-WD-UH-00 Card Reader Module Features:

Supported Card Types: ISO14443A protocol cards (S50/S70/F08/Ultralight).
Plug-and-play, no driver installation required.
IC card (13.56MHz high-frequency card) complies with ISO14443A protocol, commonly used for M1/S50 cards and F08 cards. It features 1K-byte storage capacity with 16 sectors and 64 blocks. Sector 0 block 0 serves as a physical block, supporting functions like data storage encryption and sector encryption.
Embedded composite microprocessor technology.
Enhanced microcontroller system improves firmware code stability, effectively preventing data overflow. It optimizes instruction execution time and data interaction rhythm during operations and data processing.
Low power consumption.
Strong anti-interference capability, suitable for various environments.
High-speed transmission (data response time less than 100ms).
Wireless sensing (contactless RF technology).
System compatibility (Windows, Android).

Keyword:	Card Reader Module	Operating Systems:	Windows ALL, VISTA, LINUX, Android
Communication Interface:	USB, UART TTL, RS232, RS485	Operating Voltage:	3.3V~5V (Refer to the specifications for detailed voltage values)
Communication Speed:	Default 9600bps (customizable upon request)	Reading Distance:	5-8cm (Varies based on card type, size, and metal environmental interference)
Module Dimensions:	72mm*45mm	Antenna Dimensions:	Default integrated; optional separate type
